CSL Part Number: 85485

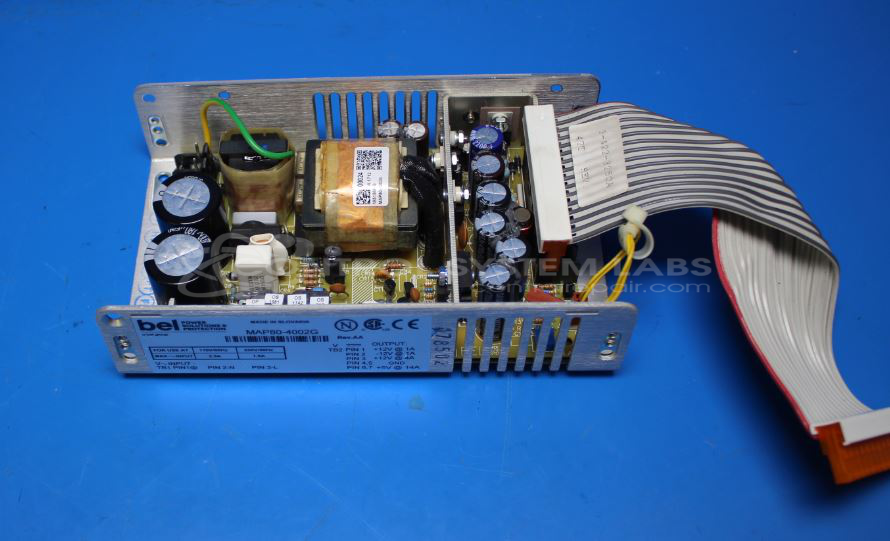

Product Overview: The MAP80-4002G is a quad-output switching power supply manufactured by Prototec (also known as Bel Power Solutions or Protec). It provides multiple DC voltage rails, typically including 12V and 15V outputs, from a single AC input. This compact unit is commonly used in industrial automation systems, control panels, and embedded equipment requiring multiple regulated voltages. The design incorporates standard switching topology with electrolytic filtering and MOSFET-based conversion for efficient power delivery across all four outputs.
Category: Power Supply
Manufacturer: Prototec
Alternate Manufacturer Names: Bel Power Solutions & Protec
Manufacturer Part Number: MAP80-4002G
Other Synonyms: Bel Power Solutions & Protec
Common Failures
This product commonly experiences issues related to defective components. A frequently observed symptom is the failure to power on, often traced back to blown fuses or damaged power components. These issues can occur due to events such as power surges.
Repair Approach
The repair process typically involves diagnostic testing using specialized equipment to identify defective components. Common solutions include replacing blown fuses and other damaged components with compatible parts. Each repair is followed by testing to verify proper operation.
Testing & Quality
Post-repair, the product undergoes burn-in testing with electronic loads to verify operational stability and performance. The testing process also includes verification of internal and external voltage levels to confirm proper operation.
Service and repair your broken Prototec part
We can repair your Prototec model MAP80-4002G in our facility. Let our skilled technicians get your Prototec back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
