CSL Part Number: 113738

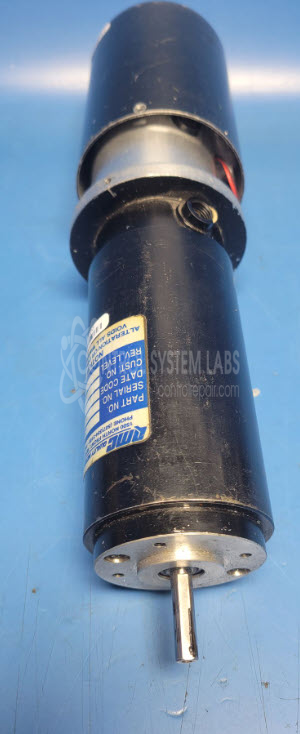

Product Overview: The QMC 23DCMT1481 is a brushed DC servo motor with an integrated encoder used for precision positioning in multi-axis motion control systems. This motor provides closed-loop feedback for accurate position tracking and is commonly found in CNC machines, automated manufacturing equipment, and other industrial motion applications requiring coordinated axis control. The encoder mounts to the motor shaft to monitor position and velocity, enabling the servo drive to maintain precise control of the axis movement.
Category: Servo Motors
Manufacturer: QMC

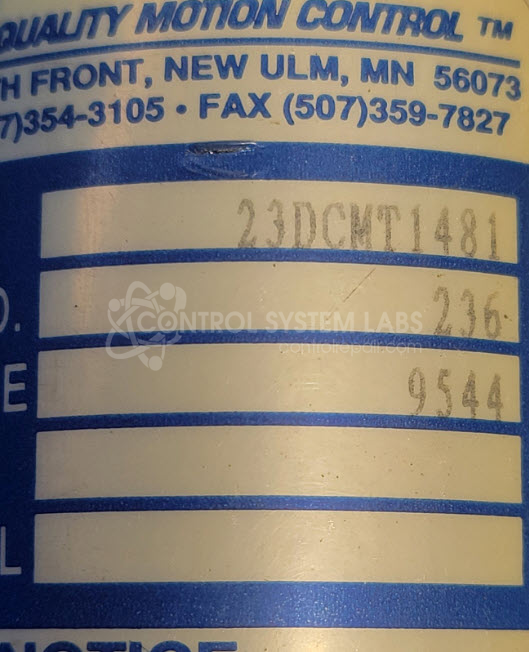

Manufacturer Part Number: 23DCMT1481
Please send in complete, do not disassemble, include problem description, wiring diagrams and drive information, along with machine model and serial number this is from.
Common Failures
These servo motors may experience failure due to power supply issues that can lead to unintended axis movement. This can result in motors contacting hard stops, potentially causing damage such as burnt odors, missing or damaged brushes, and components becoming stuck or bound in place.
Repair Approach
Repair typically involves addressing power supply problems to prevent axis drift. Additionally, replacing any missing or damaged components, such as brushes and holders, and ensuring all connections are properly secured is part of the repair process. Internal parts are inspected and repaired as needed to restore motor function.
Testing & Quality
After repairs, a comprehensive inspection is performed to verify that all components are intact and functioning correctly. This includes a thorough review of the motor assemblies to ensure quality and reliability post-repair.
Repair your broken QMC part
We can repair your QMC model 23DCMT1481 .
Please note: our repair turnaround time may be longer than our standard lead times for this item.
Step 1 -
Click the green button above, "Repair Now," and add to your RMA.
Step 2 -
Print the RMA form that is emailed to you, and put it in a box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
You will be sent an authorization for repair via email. Your approval is needed before any work is started.
