Repair Price: $ 734.00
Purchase
CSL Part Number: 107344

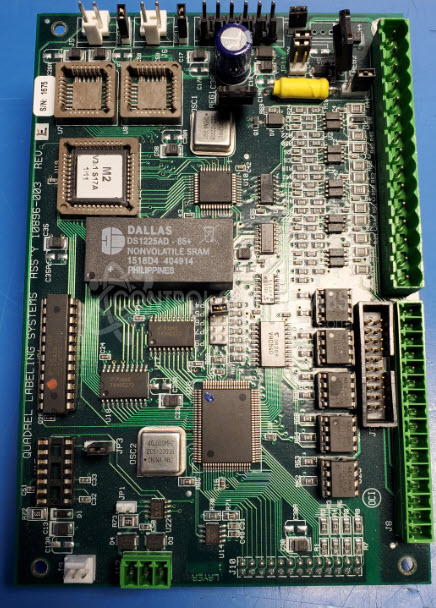

Product Overview: The 10896-003 REV E is a control board manufactured by Quadrel Labeling Systems for use in their automated labeling equipment. It operates on dual power inputs of 17VDC and 5VDC, with onboard voltage regulation providing 14.8V and 5V outputs. The board features multiple optocoupler inputs, solid state relay outputs, and dual oscillators running at approximately 4.9MHz and 40MHz. A key component is the DS1225AD non-volatile SRAM with integrated battery backup (U20), which stores critical programming and configuration data but can experience battery failure over time requiring replacement.
Category: Control Board
Manufacturer: Quadrel Labeling Systems
Manufacturer Part Number: 10896-003 REV E
Limited Repair
The Quadrel Labeling Systems part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Quadrel Labeling Systems part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
