Quincy Compressor 96QY01.00 Airmaster M5 Compressor Control

Repair

Call for price

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/70166/image_1920?unique=ef909b4
  • Condition

Purchase Price: $ 0.00 $ 0.00 0.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 86551

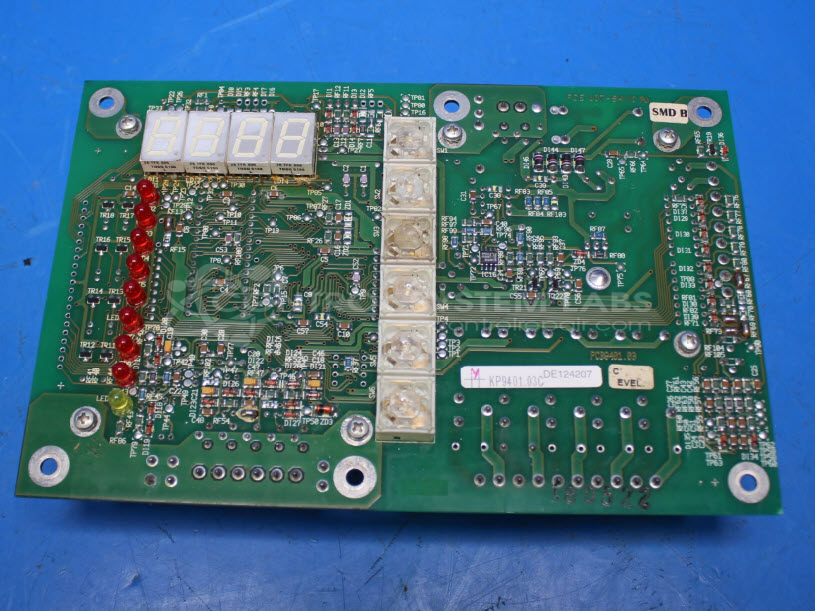

Product Overview: A microprocessor-based control board for rotary screw and reciprocating air compressors. It manages compressor operation, monitoring pressure, temperature, and operating modes while controlling load/unload sequencing and protective shutdowns. Commonly integrated into industrial compressed air systems for automated start/stop and fault indication.
Category: Control Board
Manufacturer: Quincy Compressor
Manufacturer Synonyms: Coltec Industries
Manufacturer Part Number: 96QY01.00
Also Known As(AKA): KP9401.03C

Common Failures

One known issue with this product is the absence of a 20V power source, which can be traced back to an open 2.7ohm resistor. This issue may be related to connections at a specific terminal in the unit.

Repair Approach

Repairs typically involve replacing the faulty resistor. Although an integrated circuit was also replaced during troubleshooting, it did not resolve the power source issue. Additional context indicates that successful function of the 20V source may depend on integrating the board with the full unit.

Testing & Quality

Component testing is conducted to ensure reliability, though full function testing sometimes requires the board to be within the complete unit. All repairs are verified for quality control.

Service and repair your broken Quincy Compressor part


We can repair your Quincy Compressor model 96QY01.00 in our facility. Let our skilled technicians get your Quincy Compressor back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
