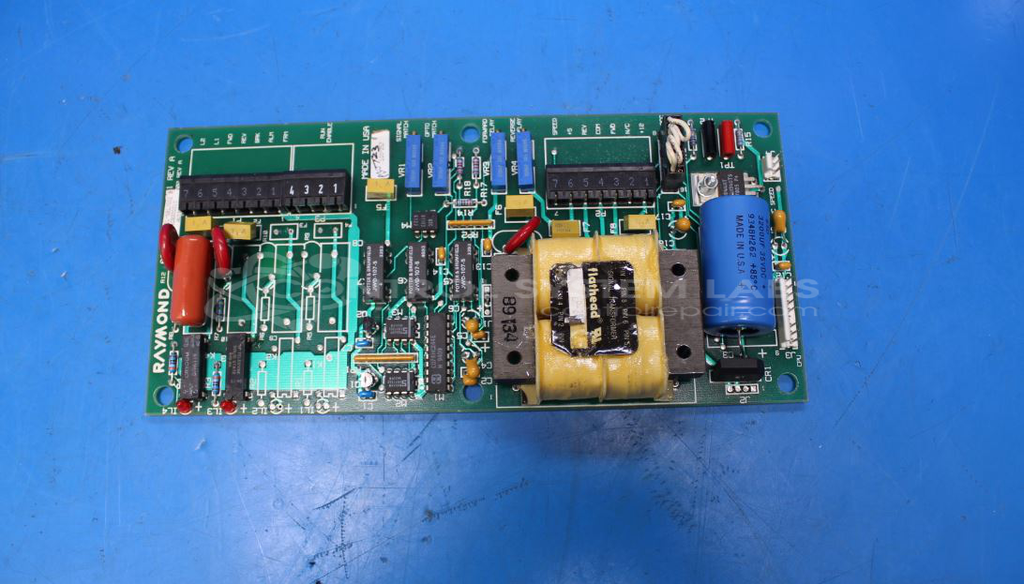

Raymond Corporation 840-001-581/001 B Motor Interface Board

Repair

Call for price

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/70218/image_1920?unique=4e151b2
  • Condition

Purchase Price: $ 0.00 $ 0.00 0.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 86603
Category: Control Board
Manufacturer: Raymond Corporation
Manufacturer Part Number: 840-001-581/001 B

Common Failures

The Raymond Motor Interface board was reported to not operate correctly, though no specific issue was initially defined. Evaluation revealed poor solder connections and workmanship from previous repairs, along with a missing snubber capacitor.

Repair Approach

Repairs involved modifying the circuit for compatibility with different parts, replacing solid-state relays, adding a missing snubber capacitor, and repairing solder connections. Additional components, such as an LED and a fuse, were also replaced.

Testing & Quality

Components were successfully bench-tested. A full functional test was not possible. Quality control confirmed that all repairs were properly executed.

Service and repair your broken Raymond Corporation part


We can repair your Raymond Corporation model 840-001-581/001 B in our facility. Let our skilled technicians get your Raymond Corporation back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
