Repair
Repair Price: $ 1,592.00
Purchase
CSL Part Number: 67443

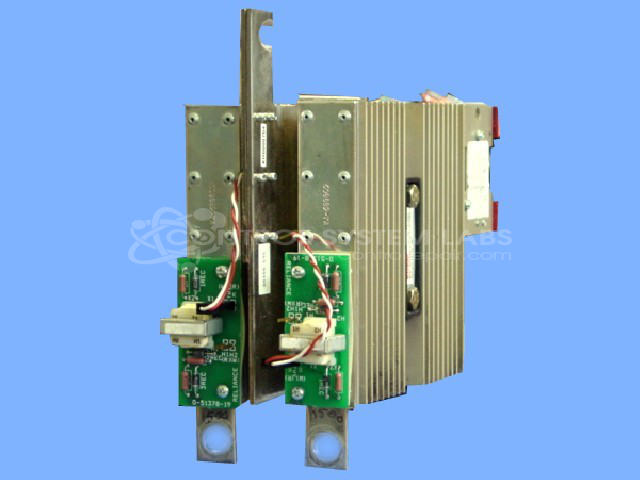

Category: Rectifier Stack
Manufacturer: Reliance Electric
Manufacturer Part Number: 86466-59S
Series: Rectifier Stack
Also Known As(AKA): 0-51378-19 W/2 SCR
Common Failures
Several issues have been reported, primarily involving defective transformers on trigger boards and SCR problems. Common faults include defective or shorted SCRs, reversed connectors, dirty rectifier stacks, and issues with the snubber capacitors.
Repair Approach
Repairs generally involve replacing faulty components, such as SCRs and transformers, correcting alignment issues, and thoroughly cleaning components like rectifier stacks. Ensuring proper installation and orientation of connectors is also a critical step in the repair process.
Testing & Quality
Comprehensive testing is conducted to verify repairs. This includes testing SCRs up to 1500V, verifying the functionality of components such as varistors and snubbers, and extensive burn-in periods ranging from 2 to 12 hours to ensure reliability. The unit is tested to verify functionality before being returned to the customer.
Service and repair your broken Reliance Electric part
We can repair your Reliance Electric model 86466-59S in our facility. Let our skilled technicians get your Reliance Electric back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
