Repair
Repair Price: $ 2,444.00
Purchase
CSL Part Number: 53642

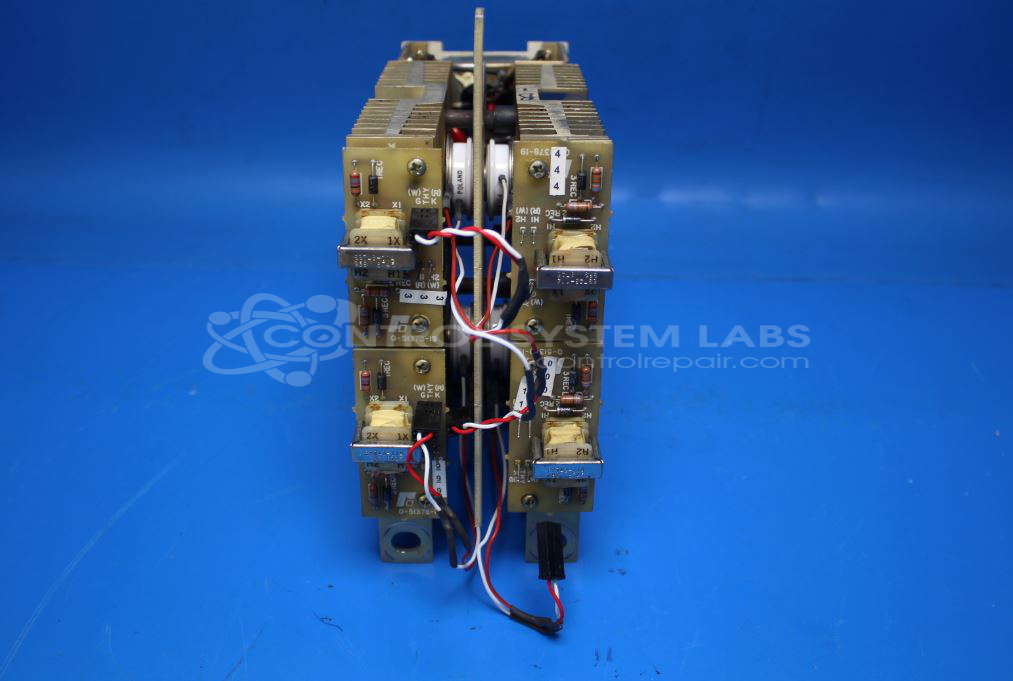

Category: Rectifier Stack
Manufacturer: Reliance Electric
Manufacturer Part Number: 86466-60W
Series: Rectifier Stack
After repair, this assembly is tested for a minimum of 5 hours.
Common Failures
Typical issues include a blown varistor, damaged resistor, and damage to the thyristor input. These components often show signs of wear or failure that may require replacement.
Repair Approach
The repair process involves replacing damaged components such as varistors, resistors, and thyristors as needed. During one evaluated repair, all four thyristors were replaced to help ensure consistent performance across the system.
Testing & Quality
After repairs, thorough testing is conducted to verify the functionality of the rectifier stack. Tests include checking SCRs for required voltage handling and proper turn-on characteristics. Additionally, components in the snubber networks, including capacitors and resistors, are inspected. A burn-in period is performed, with the unit operating correctly after one hour of testing.
Service and repair your broken Reliance Electric part
We can repair your Reliance Electric model 86466-60W in our facility. Let our skilled technicians get your Reliance Electric back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
