Repair
Repair Price: $ 1,684.00
Purchase
CSL Part Number: 74556

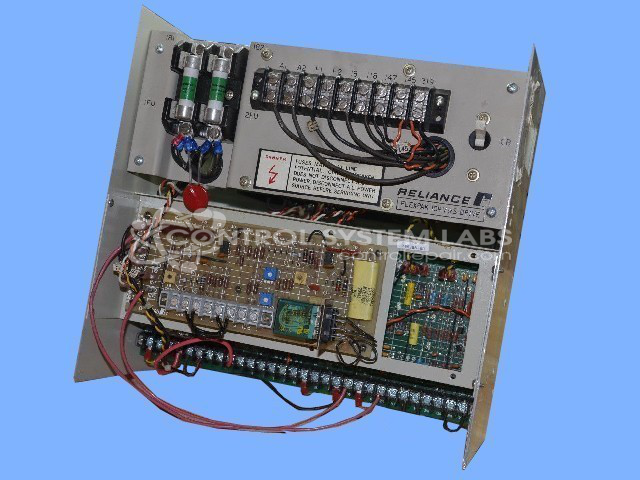

Product Overview: The Reliance Electric FLEXPAK 104 VS is a regenerative DC motor drive rated from 0.5 to 5 horsepower. It provides controlled speed and torque for DC motors by regulating armature voltage (up to 180VDC) and field current (up to 100VDC) from AC input power. Regenerative capability allows the drive to return energy to the supply during motor deceleration or braking. Common applications include paper processing machinery, material handling systems, and other industrial equipment requiring precise speed control and bidirectional operation of DC motors.
Category: DC Motor Controls
Manufacturer: Reliance Electric
Manufacturer Part Number: FLEXPAK 104 VS
Common Failures
This product commonly experiences issues related to defective components and solder joints. Symptoms may include the drive failing to move the motor, which can be associated with burnt resistors or degraded capacitor connections.
Repair Approach
The repair process typically involves resoldering connections as needed and replacing defective components such as operational amplifiers, resistors, capacitors, and diodes. Circuit board trace repairs may also be performed to restore proper functionality.
Testing & Quality
After repairs, testing is performed, including burn-in tests with appropriate loads. Successful tests verify operation, confirming proper response to input adjustments.
Service and repair your broken Reliance Electric part
We can repair your Reliance Electric model FLEXPAK 104 VS in our facility. Let our skilled technicians get your Reliance Electric back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
