Repair
Repair Price: $ 1,856.00
Purchase
CSL Part Number: 85340

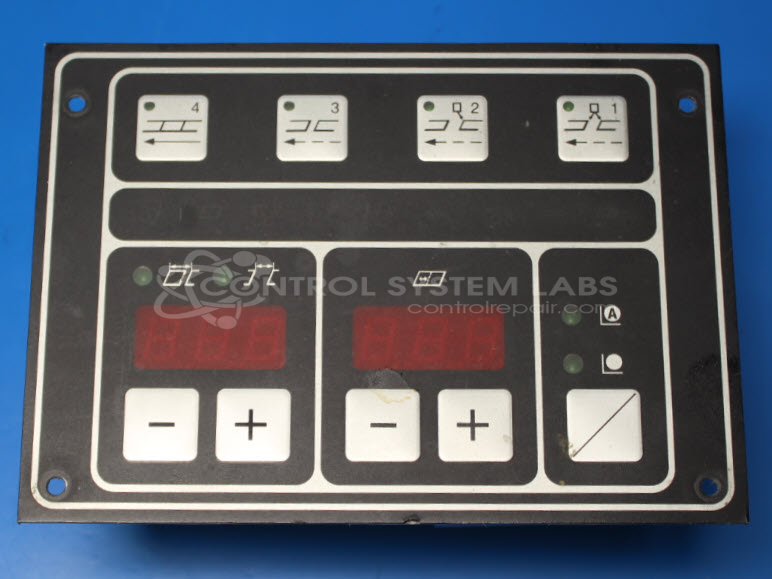

Product Overview: The Resotec 90.171.01 is a keypad controller used in Stahlfolder Heidelberg DFC2000 paper folding systems. It integrates operator interface functions with control circuitry, featuring front panel buttons, LED indicators, and a display for machine operation. The unit operates on 27VAC input and provides 24VDC regulated output plus a 50mA current source. It controls external devices through relay outputs and monitors multiple switch inputs. Key circuits include bridge rectifier input stage, switching power supply, and relay-driven output stage for solenoid control in commercial printing folder equipment.
Category: Operator Interface
Manufacturer: Resotec
Alternate Manufacturer Names: Stahlfolder Heidelberg
Manufacturer Part Number: 90.171.01
Other Synonyms: Stahlfolder Heidelberg
Service and repair your broken Resotec part
We can repair your Resotec model 90.171.01 in our facility. Let our skilled technicians get your Resotec back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
