CSL Part Number: 29950

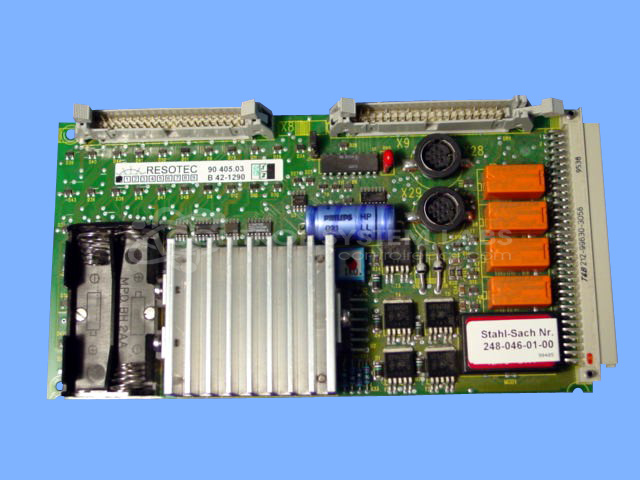

Product Overview: The A7 Stahl Folder Control Board by Resotec (model 90 405.03) is a control board used in Stahl folder systems for commercial printing and bindery operations. It manages sheet feeding actuation and relay control functions. The board operates on 24V input power and includes integrated DC-DC conversion circuitry for 5V logic. It features multiple relay outputs for controlling mechanical folder components and uses a battery-backed configuration for parameter retention.
Category: Control Board
Manufacturer: Resotec
Manufacturer Part Number: 90 405.03
Not supported in repair at Control System Labs. No replacements.
Common Failures
Common issues reported with this product include non-operation of the sheet feeder and failure of the power switch. Corrosion on the battery holder and poor solder connections are frequently observed during evaluation.
Repair Approach
The repair process may involve replacement of defective components such as power switches and capacitors. Preventative replacements and cleaning of corroded battery holders are also performed when needed. Diagnostics are conducted using specialized testing equipment to identify issues.
Testing & Quality
Repaired units undergo focused testing including component testing and burn-in tests with various load conditions. Each repair must pass specific testing thresholds to ensure operational stability. Please note that warranty terms vary by repair type and are documented in CSL's Terms & Conditions.
We do NOT offer repair on this item
Unfortunately, Control System Labs does NOT offer repair for the Resotec part number . Here are some possible reasons:
- the parts may no longer be available
- the item may be encased in plastic epoxy
- we do not have the necessary equipment to do the repair.
Please contact the manufacturer of this part number to see if a new part number or compatible replacement is available.
