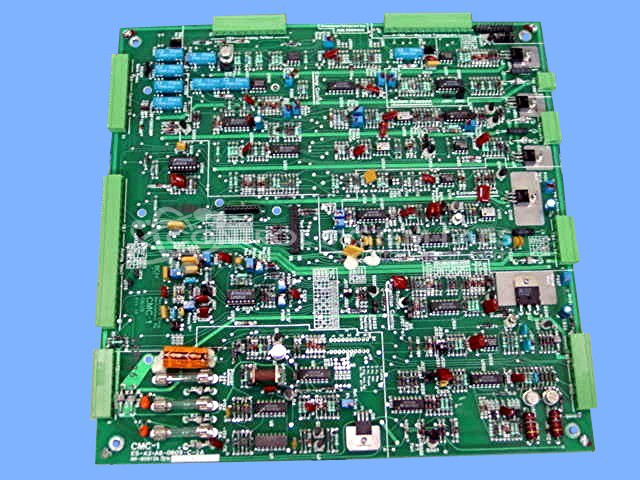

Rexroth CMC-1 3989409 Motherboard without Module

Repair

Repair Price: $ 3,532.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/47842/image_1920?unique=dbe9f99
  • Condition

Purchase Price: $ 0.00 $ 0.00 3532.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 28981
Product Overview: A control motherboard used in CNC machine tools and industrial automation systems, serving as the main circuit board that interfaces with plug-in modules. Provides signal routing and switched outputs through terminal connectors to drive solenoids and related controls. Supplied without the module installed.
Category: Control Board
Manufacturer: Rexroth
Manufacturer Part Number: CMC-1
Also Known As(AKA): 3989409 CINCI P/N

Common Failures

One known issue for this product involves a loss of voltage at connector TB-3, which prevents the solenoid from operating. This is typically caused by an open component or missing fuses.

Repair Approach

The repair process generally involves replacing the faulty component and installing the required fuses. Additionally, resoldering connectors may be performed to help ensure reliable operation.

Testing & Quality

After repairs, the unit undergoes an extended burn-in period to verify the effectiveness of the repairs and help ensure long-term reliability.

Service and repair your broken Rexroth part


We can repair your Rexroth model CMC-1 in our facility. Let our skilled technicians get your Rexroth back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
