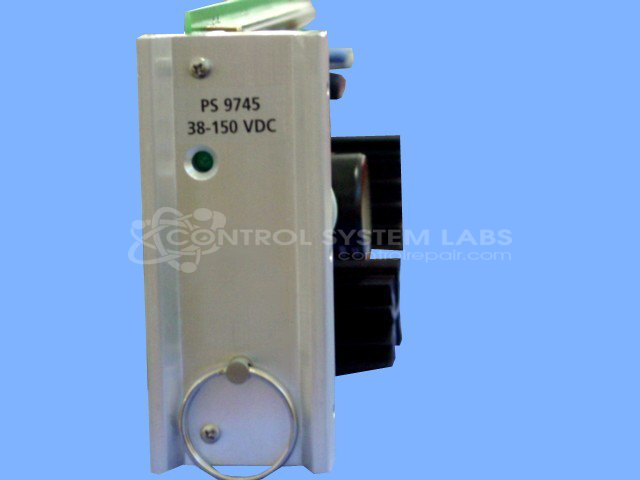

RFL Electronics PS9745 38-150VDC Power Supply Board
Repair
Repair Price: $ 844.00
Purchase
CSL Part Number: 36936
Product Overview: The RFL Electronics PS9745 is a multi-output switching power supply that accepts 38-150VDC input and provides regulated +5VDC, +15VDC, and -15VDC outputs. It features adjustable voltage regulation via onboard potentiometer and utilizes high-voltage DC capacitors for input filtering. This board is commonly used in industrial paper processing equipment and other systems requiring multiple isolated voltage rails from a variable DC bus. The compact design includes white bus bars for high-current distribution and snap-in capacitors for bulk energy storage.
Category: Power Supply
Manufacturer: RFL Electronics
Manufacturer Synonyms: RFL Industries, Hubbell, Dowty Group
Manufacturer Part Number: PS9745
Also Known As(AKA): 105905
Use correct model number on the board for pricing.
Common Failures
Several common failures for this product include defective capacitors, corroded components, and faulty solder joints. Some units also experience physical damage.
Repair Approach
Repairs typically involve replacing defective components or reworking solder joints. In cases of physical damage, separating components and applying protective measures may be necessary. Preventative maintenance is also occasionally performed by replacing components susceptible to failure.
Testing & Quality
After repairs, units undergo diagnostic testing, including burn-in tests under load conditions, to verify stability and normal operation. Testing includes checking output voltages for stability and alignment with specifications. Upon completion, products are checked by a quality technician for final verification.
Service and repair your broken RFL Electronics part
We can repair your RFL Electronics model PS9745 in our facility. Let our skilled technicians get your RFL Electronics back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
