Repair
Repair Price: $ 1,408.00
Purchase
CSL Part Number: 35409

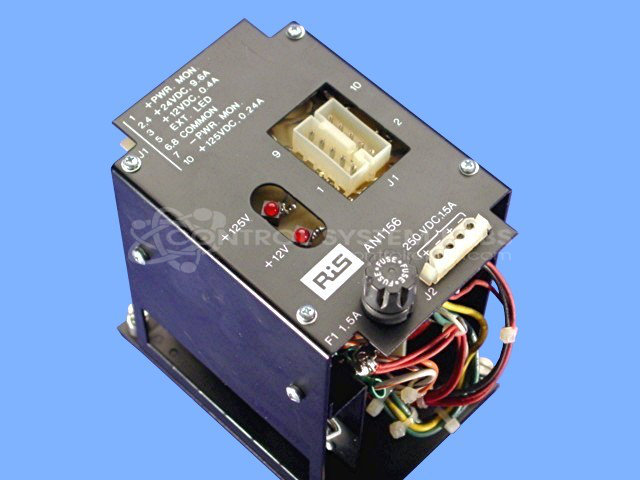

Product Overview: The RIS AN1156 is a multiple-output DC-DC converter power supply that operates from a 250VDC input and provides three regulated DC outputs: 12V, 24V, and 125V. It uses a push-pull oscillator topology with BUX48 power transistors operating at approximately 870Hz, employing a custom toroidal transformer with multiple secondary windings. The unit also includes optoisolated indicator outputs for status monitoring. Commonly found in industrial control systems requiring multiple voltage rails from a high-voltage DC bus.
Category: DC-DC Converter
Manufacturer: RIS
Manufacturer Synonyms: Rochester Instruments Systems, AMETEK
Manufacturer Part Number: AN1156
Service and repair your broken RIS part
We can repair your RIS model AN1156 in our facility. Let our skilled technicians get your RIS back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
