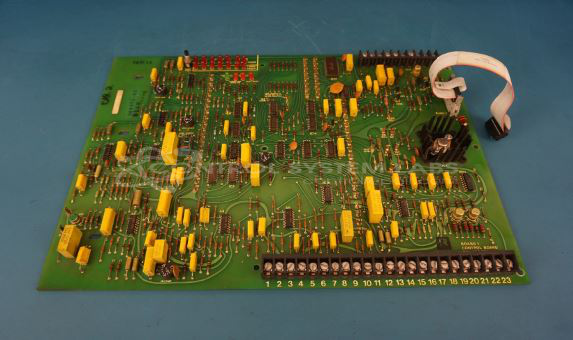

Robicon 560275-02 DC Motor Control Board

Repair

Repair Price: $ 1,256.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/100398/image_1920?unique=af251da
  • Condition

Purchase Price: $ 0.00 $ 0.00 1256.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 80050
Product Overview: A DC motor control board that regulates and manages the operation of DC drive systems. Used in industrial motor control and elevator applications, it interfaces via ribbon cable connections and includes onboard power supply circuitry for driving and controlling DC motors.
Category: DC Motor Controls
Manufacturer: Robicon
Alternate Manufacturer Names: Otis Elevator
Manufacturer Part Number: 560275-02
Other Synonyms: Otis Elevator

Common Failures

Units may exhibit output problems. In one evaluation, multiple integrated circuits showed partial short conditions, resulting in excessive current draw. This level of damage was determined to be beyond economic repair within typical constraints.

Repair Approach

The repair process involved verifying the problem and attempting to address it by replacing shorted diodes and zener components in the power supply. However, due to the extensive nature of the damage, which included multiple partially shorted integrated circuits across the board, comprehensive replacement of all affected components was deemed necessary. The customer declined the quotation for this level of repair.

Outcome

The unit was returned to the customer unrepaired after evaluation and partial repair efforts. Substantial further work would have been required to address the defects entirely.

Service and repair your broken Robicon part


We can repair your Robicon model 560275-02 in our facility. Let our skilled technicians get your Robicon back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
