CSL Part Number: 28602

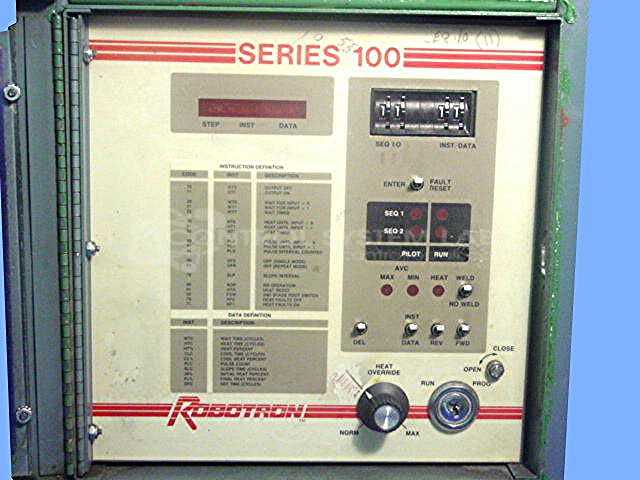

Product Overview: The 100 Welder Logic Card is a microprocessor-based control board manufactured by Robotron for their Series 100 welding systems. It uses a CDP1806 microprocessor with external EPROM program memory and features an LED display for operator interface and system status. The card controls welding sequence logic and parameters stored in RAM. Common applications include automated welding operations in industrial manufacturing environments. Key components include the CDP1806 microcontroller, D2732D EPROM chips, power supply circuitry with electrolytic capacitors, and flame-proof resistors for safety compliance in welding applications.
Category: Welders
Manufacturer: Robotron
Manufacturer Part Number: 473-0-0209
Include complete 100 control & I/O cards for this repair.
Common Failures
This product commonly exhibits issues related to LED screen function, which may be associated with component-level faults on the circuit board. Issues with ROM memory can also prevent proper operation of the device.
Repair Approach
Diagnosis is typically performed through testing to identify defective components. Repairs may include component replacement and programming or replacing ROM with a compatible version. In some cases, additional components may need to be installed and tested to ensure correct operation.
Testing & Quality
After repairs, the unit undergoes testing to verify proper function. Successful repair is confirmed by operation checks and comparison to reference units when available. Additional checks are performed by secondary technicians to verify repair effectiveness.
Service and repair your broken Robotron part
We can repair your Robotron model 473-0-0209 in our facility. Let our skilled technicians get your Robotron back in operation quickly.
