Home >  RTC 79527 W/79526 Timing Board with 5 Zone Control Cards

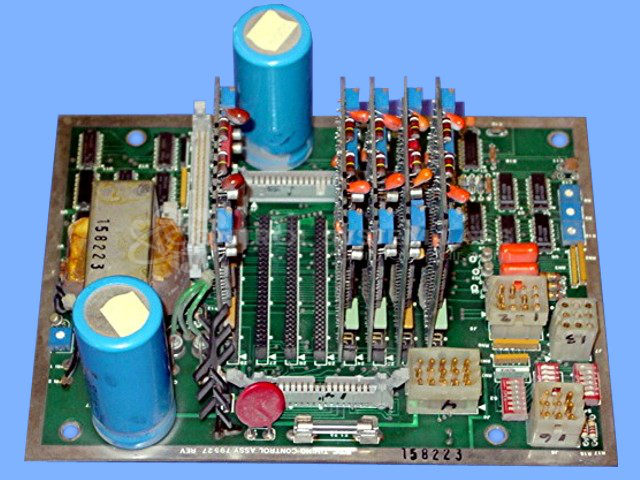

RTC 79527 W/79526 Timing Board with 5 Zone Control Cards

Repair

Repair Price: $ 1,472.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/82714/image_1920?unique=fe16674
  • Condition

Purchase Price: $ 0.00 $ 0.00 1472.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 72376
Product Overview: A timing board paired with five zone control cards, forming a control assembly that regulates heating zones in industrial infrared and radiant drying or curing systems. It provides zone-specific timing and output control, commonly used in paper processing and web manufacturing equipment.
Category: Control Assembly
Manufacturer: RTC
Manufacturer Part Number: 79527 W/79526
Also Known As(AKA): RADIANT TECHNOLOGY

Common Failures

Common issues with this product include power-related problems. Specifically, there are instances where there is no power after the voltage regulator, leading to a lack of output. These problems are often due to poor solder connections or issues with the connection at the center tap of the transformer.

Repair Approach

The primary repair strategy involves cleaning and repairing poor solder connections on the printed circuit board. In certain cases, integrated circuits have been replaced to address shorted components.

Testing & Quality

Repairs are verified to ensure the problem has been effectively addressed. Quality checks are conducted to confirm the integrity of the repair work.

Service and repair your broken RTC part


We can repair your RTC model 79527 W/79526 in our facility. Let our skilled technicians get your RTC back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
