Repair
Repair Price: $ 404.00
Purchase
CSL Part Number: 82652

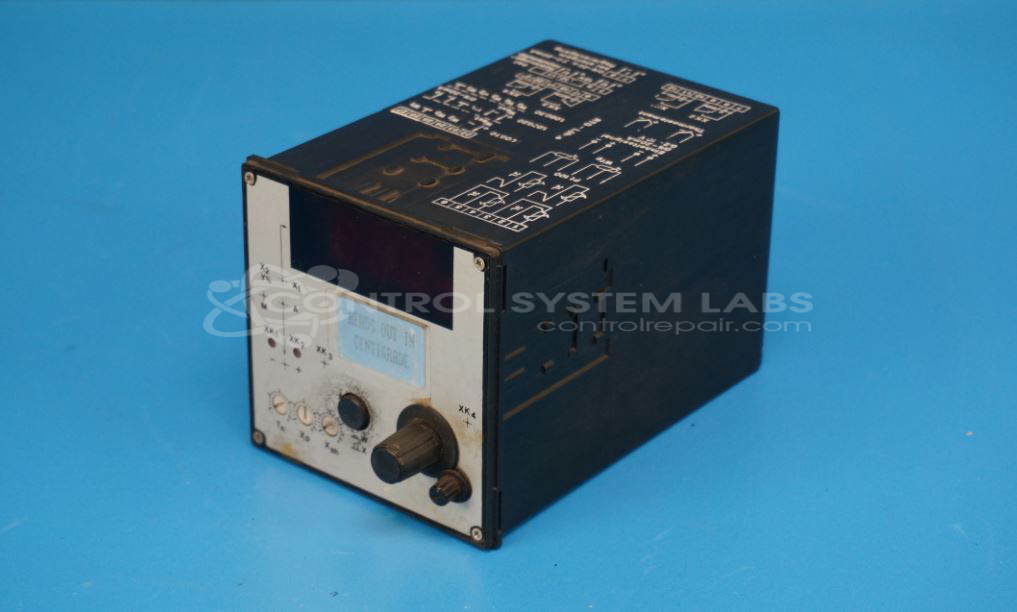

Product Overview: The RTG 1.701.01 is a temperature controller designed for industrial process control applications, commonly found in paper manufacturing equipment. It accepts RTD (resistance temperature detector) inputs and provides relay outputs for heating and cooling control. The unit monitors process temperature and maintains setpoint through DPDT relay switching. It features front panel controls for setpoint adjustment and temperature range configuration, with calibration capability spanning 50°C to 600°C. The controller is housed in a panel-mount enclosure with analog readout display.
Category: Temperature Control
Manufacturer: RTG
Manufacturer Part Number: 1.701.01
Common Failures
Common failures observed during evaluation include defective pushbutton switches, electrolytic capacitors, and mechanical issues such as stripped mounting hardware or disconnected setpoint knobs. These conditions may contribute to input signal instability, relay chatter, or misalignment of internal boards.
Repair Approach
Repairs typically involve replacing defective components and restoring mechanical integrity. Examples of corrective actions include re-tapping mounting points to accommodate secure hardware installation and reinforcing mounting structures to ensure proper board alignment and knob retention.
Testing & Quality
Following repair, units undergo diagnostic testing and calibration to verify functionality. Calibration checks may be performed across the applicable temperature range to confirm accuracy. Units are subject to burn-in testing under operating conditions and final inspection prior to return.
Service and repair your broken RTG part
We can repair your RTG model 1.701.01 in our facility. Let our skilled technicians get your RTG back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
