Home >  Safeline 50H W/LWT50H-5FF/SCC & 3800-036 Interconnection Board & Power Supply

Safeline 50H W/LWT50H-5FF/SCC & 3800-036 Interconnection Board & Power Supply

Repair

Repair Price: $ 2,024.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/69523/image_1920?unique=7f32781
  • Condition

Purchase Price: $ 0.00 $ 0.00 2024.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 85908

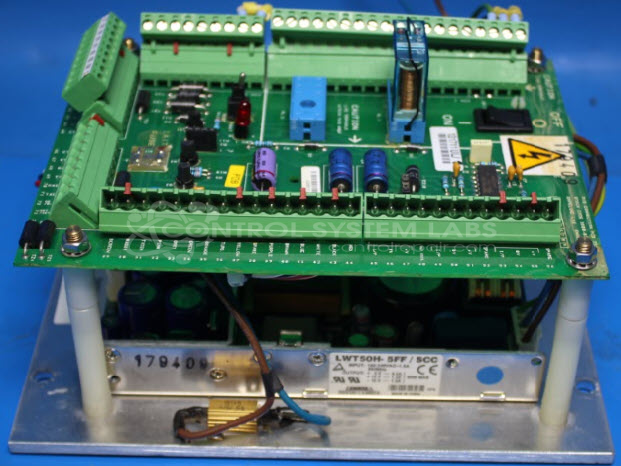

Product Overview: A combined interconnection/filter board and power supply assembly for industrial metal detector control systems. It distributes regulated DC supplies and signal connections between the control and power sections, providing filtering and PWM-driven power generation. Used in phased-array metal detectors for food processing and packaging inspection lines.
Category: Power Supply
Manufacturer: Safeline
Manufacturer Part Number: 50H W/LWT50H-5FF/SCC & 3800-036
Series: Metal Detector Power Supply

Model 50H control is used in a Safeline Model Power Phase Plus Metal Detector

Common Failures

The primary issues encountered with this product were related to power supply failures. Specifically, broken connections and faulty components affected the unit's operation. A broken wire on an inductor led to the loss of DC supplies. Additionally, leaking electrolytic capacitors and a faulty power connector were identified as causes of power issues.

Repair Approach

Repairs involved resoldering broken connections and replacing faulty components. For instance, a broken lead on an inductor was resoldered, and electrolytic capacitors were replaced to address leakage and restore functionality. Cleaning of the unit was also performed to ensure no residue impacted the performance. Repairs to connectors were made to facilitate proper power conduction.

Testing & Quality

Post-repair, each unit underwent thorough testing. The operation was verified, and the units were subjected to load testing. Power supplies were tested with relevant boards to confirm proper operation after the repairs.

Service and repair your broken Safeline part


We can repair your Safeline model 50H W/LWT50H-5FF/SCC & 3800-036 in our facility. Let our skilled technicians get your Safeline back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
