Repair
Repair Price: $ 1,928.00
Purchase
CSL Part Number: 74630

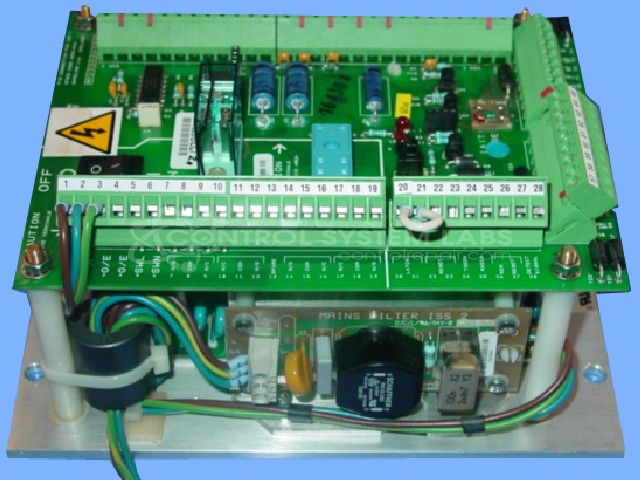

Product Overview: The Safeline Model 50H Interconnect & Filter Board with Power Supply is a combined circuit board assembly used in Power Phase Plus Metal Detectors. It provides filtered DC power to the detector's control system, typically supplying multiple voltage rails including 5V, +15V, and -15V outputs. This board integrates interconnection routing, power filtering, and voltage regulation functions in a single assembly. It is commonly found in food processing and packaging applications where metal contamination detection is required.
Category: Power Supply
Manufacturer: Safeline
Manufacturer Part Number: 50H W/WS50-3BAC & 38000-36
Series: Metal Detector Power Supply
Model 50H control is used in a Safeline Model Power Phase Plus Metal Detector
Common Failures
This product may experience failures related to capacitor degradation, including CPU faults and the inability to reset faults. Visibly domed capacitors can indicate potential component failure.
Repair Approach
Our evaluation process identifies damaged or degraded capacitors for replacement. Additional repairs may include resoldering connections as required and securing components with protective materials.
Testing & Quality
Following repair, the product undergoes testing, including burn-in tests using load simulators at specified voltage and current levels. Units that pass our testing processes demonstrate proper reset functionality and reliable operation.
Service and repair your broken Safeline part
We can repair your Safeline model 50H W/WS50-3BAC & 38000-36 in our facility. Let our skilled technicians get your Safeline back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
