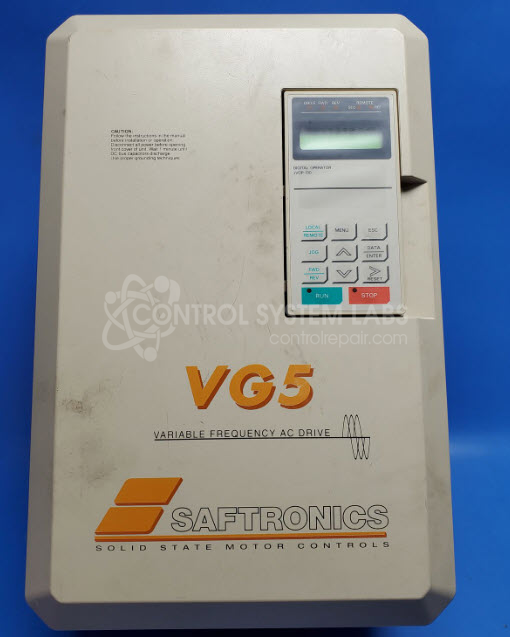

Saftronics CIMR-G5U2011 VG5 15 HP 230V AC Drive
Repair
Repair Price: $ 2,660.00
Purchase
CSL Part Number: 26898
Product Overview: The Saftronics VG5 series CIMR-G5U2011 is a 15 HP, 230V AC motor drive used for variable speed control of three-phase AC induction motors. It converts fixed-frequency AC input power into variable-frequency, variable-voltage output to regulate motor speed and torque. Common applications include pumps, fans, conveyors, and process machinery in industrial and commercial settings. The drive features adjustable acceleration and deceleration, overload protection, and programmable control parameters for optimized motor performance.
Category: AC Motor Controls
Manufacturer: Saftronics
Manufacturer Part Number: CIMR-G5U2011
Series: VG5 AC Drive
Common Failures
Frequent issues with this product include DC bus undervoltage faults, high pitch noise during operation, and display malfunctions. DC bus undervoltage faults may be related to sense circuit issues or component degradation such as gate drive capacitors or bus capacitors. Previous repair attempts or component substitutions have also been observed as contributing factors in some cases.
Repair Approach
Repair methods may involve replacing capacitors, optoisolators, and correcting previous component substitutions, particularly in gate drive circuits. Damaged traces from previous repair attempts are addressed as needed before component replacement.
Testing & Quality
Post-repair, units undergo diagnostic testing to verify resolution of faults such as undervoltage conditions and display issues. Damaged or misaligned connectors are realigned and soldered as necessary to restore proper function.
Service and repair your broken Saftronics part
We can repair your Saftronics model CIMR-G5U2011 in our facility. Let our skilled technicians get your Saftronics back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
