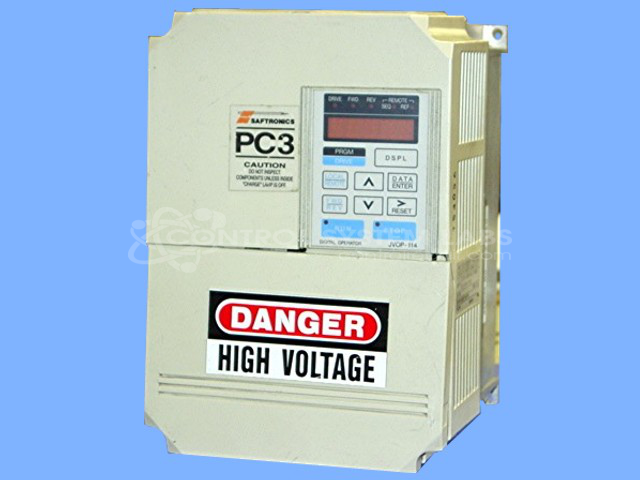

Saftronics CIMR-PCD23P7 PC3 5 HP 230VAC Inverter Drive
Repair
Repair Price: $ 1,068.00
Purchase
CSL Part Number: 67501
Product Overview: A 5 HP, 230VAC variable frequency AC motor drive that controls the speed and torque of three-phase AC motors. Used in industrial equipment such as spindle motors and other variable-speed machinery. Features microprocessor-based parameter configuration, external fault inputs, and a cooling fan.
Category: AC Motor Controls
Manufacturer: Saftronics
Manufacturer Part Number: CIMR-PCD23P7
Also Known As(AKA): YASKAWA
Common Failures
Common issues observed during evaluation include defective power supply capacitors and ground fault errors. Reported symptoms may include E-Stop errors and fault codes displayed on the device. External fault inputs may also contribute to control issues.
Repair Approach
The repair approach typically involves replacing faulty capacitors and, when necessary, the microprocessor board. In cases where original parameters cannot be fully recovered, a basic configuration is programmed to approximate the original setup. External fault inputs are also cleaned and reset as needed.
Testing & Quality
Following repair, units are tested to verify functionality. This includes running the system to confirm consistent operation and verifying that fans and replaced components function properly. Customers may need to program specific parameters as necessary for their applications.
Service and repair your broken Saftronics part
We can repair your Saftronics model CIMR-PCD23P7 in our facility. Let our skilled technicians get your Saftronics back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
