CSL Part Number: 100971

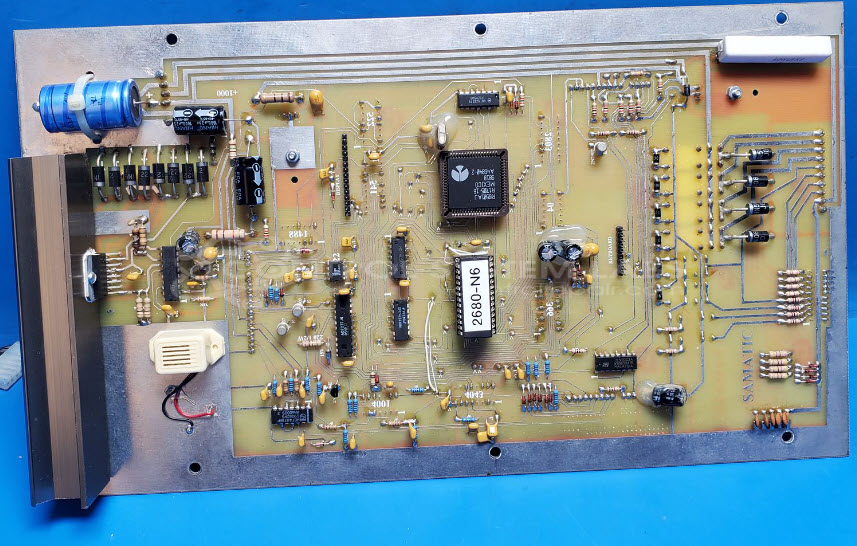

Product Overview: The 2680 Coil Winder Control Board is a specialized motor control system manufactured by Samatic for automated coil winding equipment. It integrates stepper motor control circuitry using L297 and L298N driver ICs to precisely manage winding operations. The board regulates motor speed, direction, and positioning during wire coil production processes commonly found in transformer manufacturing, motor assembly, and electromagnetic component production. It requires external transformer and rectifier circuits for power and interfaces with safety guards and operational switches.
Category: Control Board
Manufacturer: Samatic
Manufacturer Synonyms: JENLOR
Manufacturer Part Number: 3-110206
Limited Repair
The Samatic part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Samatic part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
