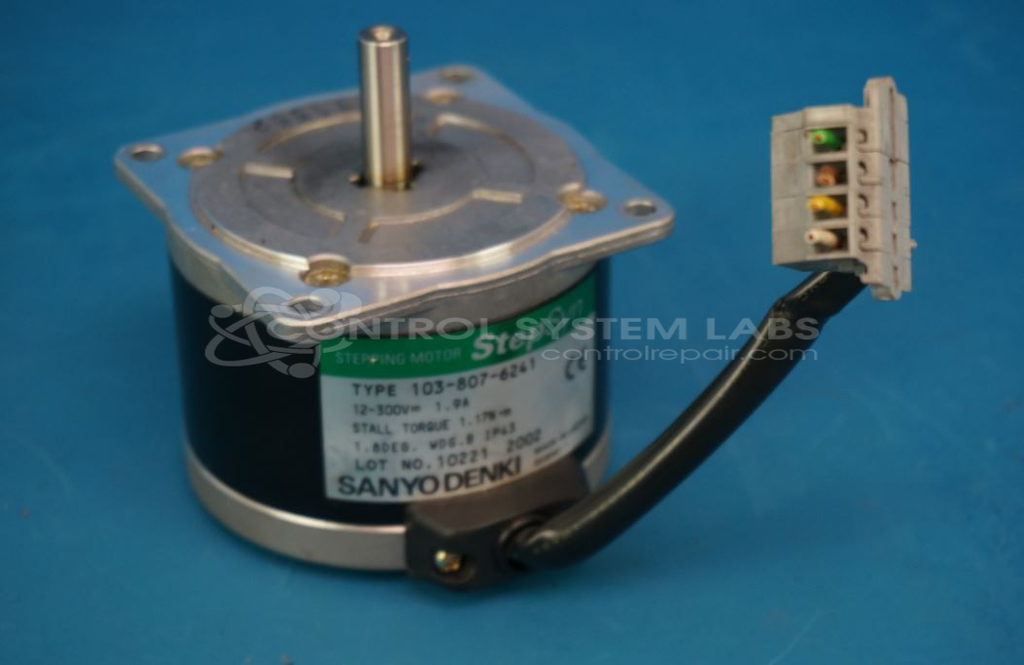

Sanyo Denki 103-807-6241 Stepper Motor, 12-300V, 1.9A, 1.8 Deg/Step
Repair
Call for price
Purchase
CSL Part Number: 81643
Product Overview: A two-phase hybrid stepping motor providing precise incremental positioning at 1.8 degrees per step. Rated for 12-300V operation at 1.9A, it drives axis movement in CNC machines and other automated motion control equipment requiring accurate, repeatable positioning.
Category: Motors
Manufacturer: Sanyo Denki
Manufacturer Part Number: 103-807-6241
Common Failures
One of the frequently reported issues with this motor involves its performance under load in CNC Flash Cut milling machines, specifically controlling the X axis table movements. While the motor runs fine with no load, it tends to stall at various table locations when connected. Additionally, after stalling, the motor may reverse direction, and during jogging operations, it occasionally moves in the same direction regardless of the intended input.
Repair Outcomes
In cases where such stalling and directional issues were reported, the motor units were often found to be Beyond Economic Repair. This determination typically follows evaluation during inspection and testing processes. Customers experiencing similar symptoms are encouraged to contact CSL to discuss evaluation options and potential replacement sources to ensure reliable machine operation.
We do NOT offer repair on this item
Unfortunately, Control System Labs does NOT offer repair for the Sanyo Denki part number . Here are some possible reasons:
- the parts may no longer be available
- the item may be encased in plastic epoxy
- we do not have the necessary equipment to do the repair.
Please contact the manufacturer of this part number to see if a new part number or compatible replacement is available.
