CSL Part Number: 115898

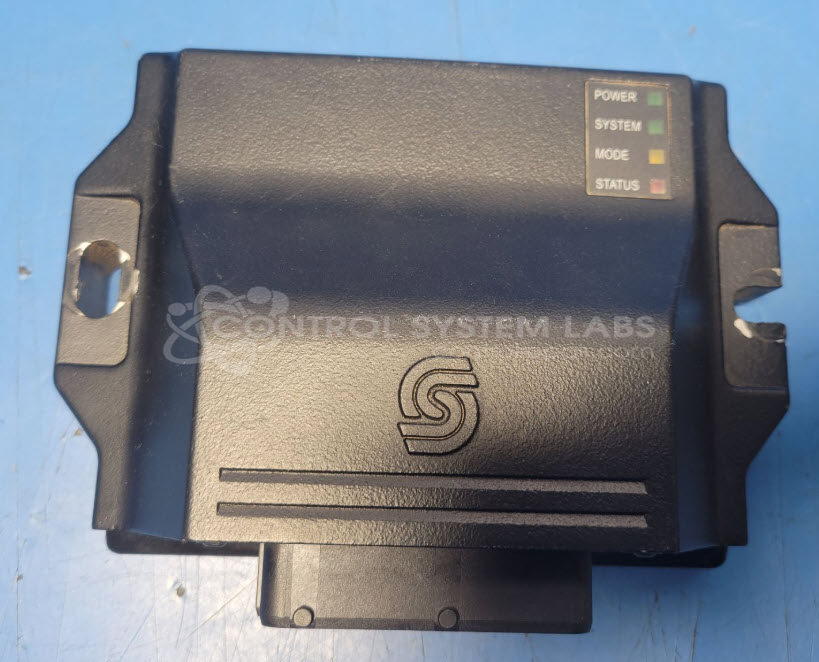

Product Overview: The Sauer Danfoss S1X-11 (part number 10102338) is an electronic control module used in mobile hydraulic systems. It processes sensor inputs and manages hydraulic functions in construction, agricultural, and material handling equipment. The module operates on dual 12V power supply, provides regulated 5V sensor power, and features diagnostic LEDs for power, system status, and operational modes. It is housed in a potted enclosure for environmental protection and connects via a multi-pin connector with 42+ pins for power, sensor inputs, and control outputs.
Category: Control Module
Manufacturer: Sauer Danfoss

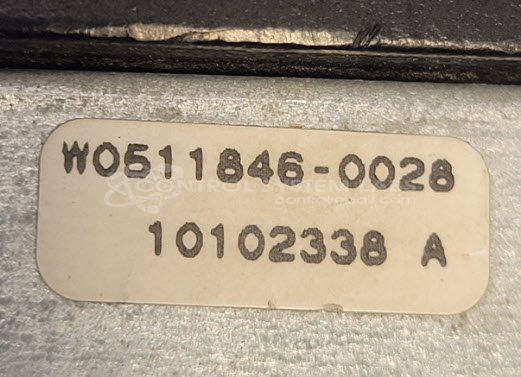

Manufacturer Part Number: S1X-11 10102338
Please include detailed problem symptoms descriptions and any wiring diagrams you have for the vehicle this is out of. Please note that because of the way these are built, de-potting and re-potting of the module are an extra charge. Very heavy potting difficult to remove without doing more damage to the circuits.
```html
Common Failures
Some units experience a condition where the main board is difficult to access due to potting material. This may present as blinking mode and status LEDs, which can indicate operational issues within the module.
Repair Approach
Repairs may involve the removal of potting material to access internal components for evaluation and repair. This process can be time-consuming and is generally estimated on an hourly basis. Once access is gained, we can conduct the necessary evaluation or repairs before reapplying the potting material.
Testing & Quality
Repairs include basic component testing and limited power-up checks to verify functionality. Due to the nature of these repairs, work performed is typically billed as Time & Materials and is not warrantied. Please consider these factors when deciding whether to proceed with repair services.
```Limited Repair
The Sauer Danfoss part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Sauer Danfoss part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
