Repair
Repair Price: $ 1,348.00
Purchase
CSL Part Number: 71912

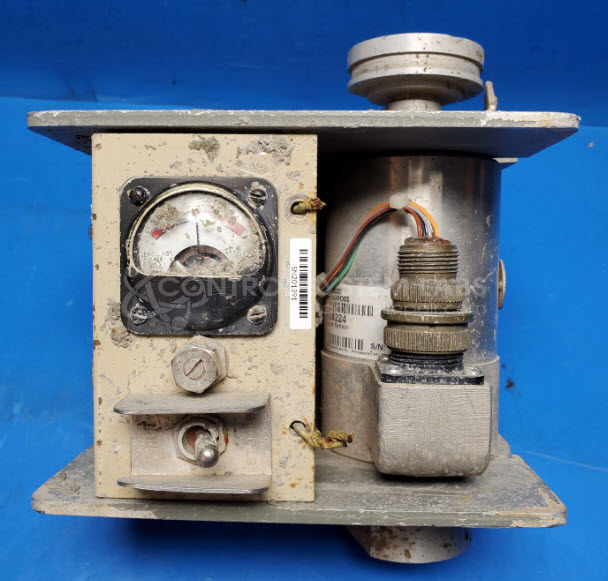

Product Overview: The Sauer-Sundstrand W895A1038 is a proportional control module used for grade and steering applications in construction and earthmoving equipment such as concrete pavers and motor graders. It provides operator interface functionality through mechanical inputs (cam-based system with spring-loaded mechanisms) and electronic outputs to control hydraulic or electrical actuators. The module features a panel meter for visual feedback, operates in selectable slope or grade modes, and includes conformal coating for environmental protection in harsh concrete and construction site conditions.
Category: Operator Interface
Manufacturer: Sauer-Sundstrand
Manufacturer Part Number: W895A1038
Also Known As(AKA): SAUER-DANFOSS
Please note If these are coated in a heavy layer of concrete there will be an additional cleaning charge
Common Failures
Components such as meters, switches, and resistors may fail due to manufacturing defects or external factors including corrosion from concrete exposure. Common symptoms include inoperative units, shorted or burned components, and physical damage such as bent panels and missing covers.
Repair Approach
Repairs typically involve cleaning to remove concrete residues, component replacement, and mechanical integrity restoration. Work may include circuit board trace repairs and reapplication of conformal coatings. Bent panels and frames are reshaped when possible, and missing covers are fabricated and installed as needed.
Testing & Quality
After repairs, units undergo testing which may include burn-in tests with and without load and operational mode verifications. Units that pass testing are expected to function correctly and meet operational standards.
Service and repair your broken Sauer-Sundstrand part
We can repair your Sauer-Sundstrand model W895A1038 in our facility. Let our skilled technicians get your Sauer-Sundstrand back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
