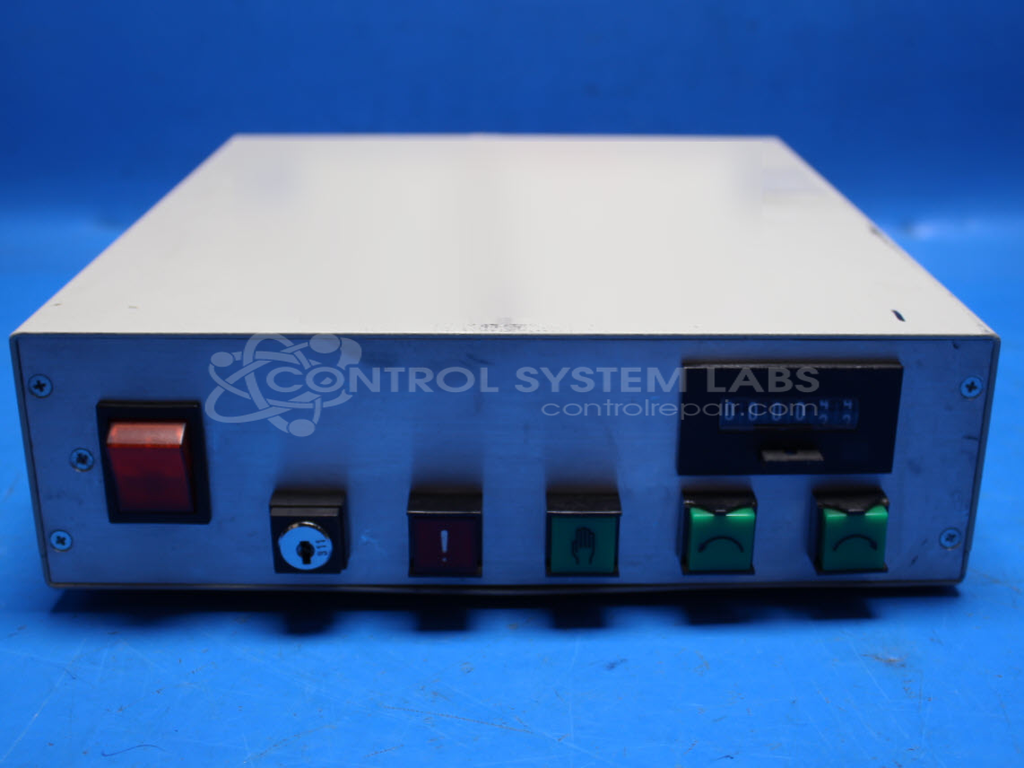

Schafer APE-101 Crimping Press Control Box

Repair

Call for price

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/71506/image_1920?unique=6361cb0
  • Condition

Purchase Price: $ 0.00 $ 0.00 0.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 87892
Product Overview: A control assembly that regulates motor drive and braking for a crimping press. It uses TRIAC-based output and IGBT brake transistor circuits to control motor speed and stopping, operating on a 240V supply. Commonly found in industrial crimping and press equipment.
Category: Control Assembly
Manufacturer: Schafer
Manufacturer Part Number: APE-101
Also Known As(AKA): M.504.0205.400

Common Failures

Common issues reported included units not driving the motor to full speed and blown fuses. Typical causes identified during evaluation included loss of output and failed output or brake components.

Repair Approach

Repairs typically involved replacing damaged components such as transistors and triacs to restore functionality. In cases where fuses were blown, the power switch was also replaced as needed. After repairs, thorough verification was conducted to confirm proper operation.

Testing & Quality

Each repaired unit was functionally tested to verify the reported issue and to confirm that the unit performed as expected. This testing helped validate the effectiveness of component replacements and the overall reliability of the repair.

Service and repair your broken Schafer part


We can repair your Schafer model APE-101 in our facility. Let our skilled technicians get your Schafer back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
