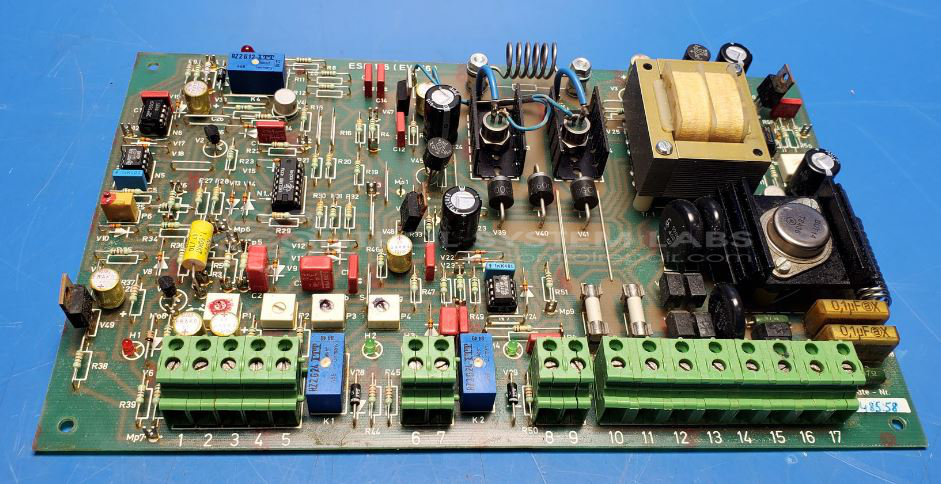

Scheer ESB106 (EV316) Motor Control
Repair
Repair Price: $ 744.00
Purchase
CSL Part Number: 12611
Product Overview: The Scheer ESB106 (EV316), also known as Grassner, is a DC motor control used in paper processing equipment to regulate saw carriage motion. It provides variable speed control with multiple operating modes including creep feed, quick traverse, and standard feed, typically outputting adjustable voltages ranging from 30V to 175V. This controller is commonly found in automated cutting and material handling systems where precise motor speed regulation is required for different operational phases.
Category: Motor Controls
Manufacturer: Scheer
Manufacturer Part Number: ESB106 (EV316)
Also Known As(AKA): GRASSNER
Common Failures
Common issues reported include low output voltage affecting motor return speed, causing slow operation, as well as reduced speed in forward motion.
Repair Approach
Repairs typically involve replacing defective components, particularly capacitors and potentiometers. Voltage settings are adjusted to restore proper performance. Preventative replacement of aged components may also be performed during evaluation.
Testing & Quality
Repaired units undergo burn-in testing with motors to verify performance at various speed settings. Multiple tests are conducted to confirm quality before units are returned.
Service and repair your broken Scheer part
We can repair your Scheer model ESB106 (EV316) in our facility. Let our skilled technicians get your Scheer back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
