CSL Part Number: 16545

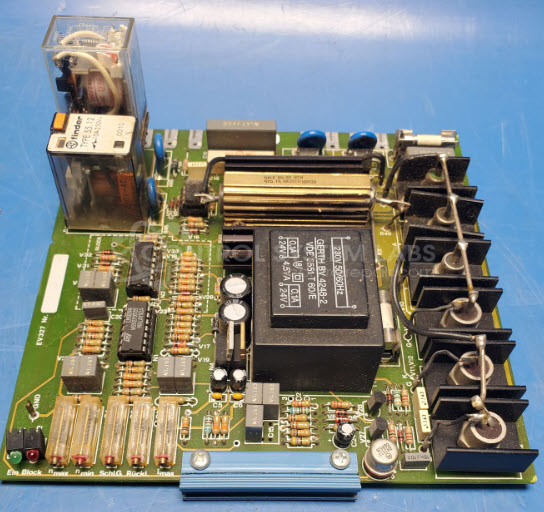

Product Overview: The Scheer EV327 is a DC motor controller used in paper manufacturing equipment. It provides independent armature and field control for DC motors, typically driving equipment requiring variable speed operation. The controller features SCR-based power control circuits, relay logic for mode switching, and adjustable speed settings via potentiometer or external switch inputs. It operates from 230VAC mains and outputs DC voltage for both armature and field circuits. Common configurations include edge card connections for control signals and power terminals for motor outputs.
Category: Motor Controls
Manufacturer: Scheer
Manufacturer Part Number: EV327
Common Failures
Common issues observed with this product include defective components and damage from previous repair attempts. Typical failures involve SCR components and relay installation inconsistencies that can affect operation.
Repair Approach
Our repair process may include replacing defective SCR components and verifying correct relay installation. Additional work can include replacing damaged edge connectors and addressing PCB damage as needed. Specific repairs are determined during evaluation.
Testing & Quality
Each repaired unit is tested to confirm functionality. Testing includes verifying field and armature outputs based on switch positions. Units are further evaluated through operational testing using appropriate loads to verify speed control and output performance. We verify that the unit operates as designed, including confirming expected operational characteristics. Quality checks include connection verification and consistency review.
Service and repair your broken Scheer part
We can repair your Scheer model EV327 in our facility. Let our skilled technicians get your Scheer back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
