Home >  Schindler Elevator 724C86G01 Sub 5 Relay Board

Schindler Elevator 724C86G01 Sub 5 Relay Board

Repair

Repair Price: $ 600.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/71016/image_1920?unique=12ebfdc
  • Condition

Purchase Price: $ 0.00 $ 0.00 600.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 87401

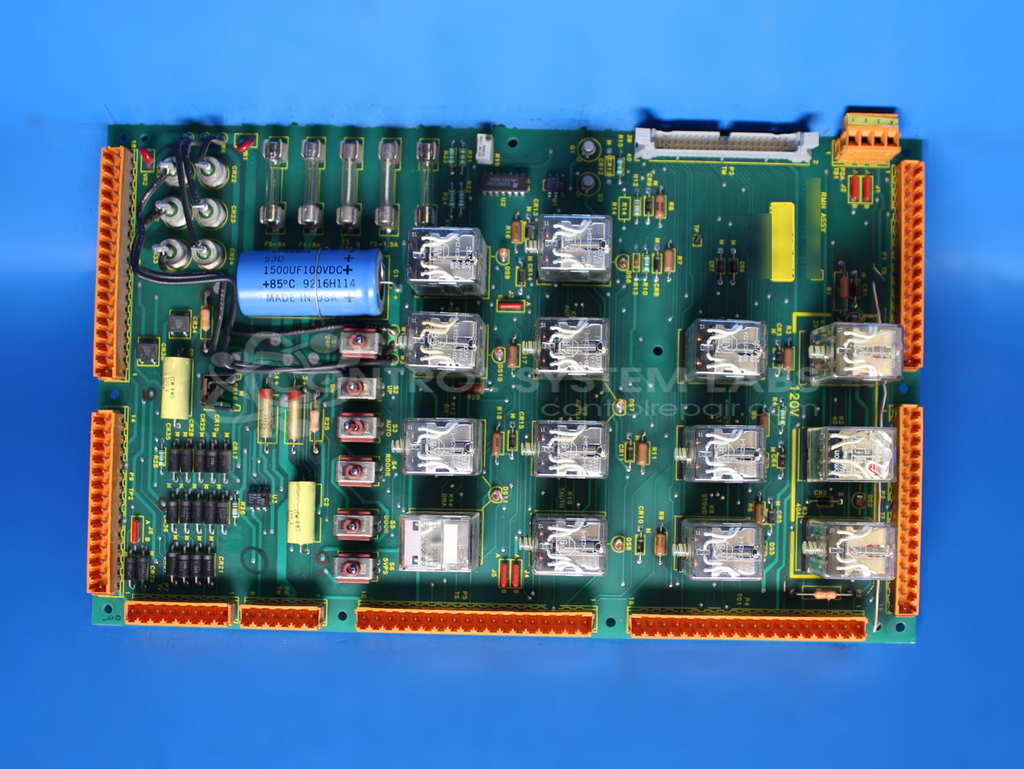

Product Overview: A relay control board used in elevator control systems to switch and manage electrical signals between controller logic and connected equipment. It incorporates multiple relays, transistor-driven switching stages, and tantalum filter capacitors across terminal-based field connections.
Category: Control Board
Manufacturer: Schindler Elevator
Manufacturer Synonyms: Westinghouse
Alternate Manufacturer Names: Westinghouse
Manufacturer Part Number: 724C86G01 Sub 5
Also Known As(AKA): 100592 S01-0
Other Synonyms: Westinghouse

Common Failures

Typical issues involve damage to terminal traces, with reports of damaged traces and grounding problems. This often results from incorrect connection to terminals.

Repair Approach

The repair process includes verifying the problem, repairing damaged foils, and replacing key components such as transistors and capacitors affected by the damage. Repaired components are restored to support proper functioning.

Testing & Quality

Post-repair testing involves checks of all relays to verify functionality of the board. Tracker testing is also employed to confirm the effectiveness of the repairs. Full function testing may not be performed in all cases.

Service and repair your broken Schindler Elevator part


We can repair your Schindler Elevator model 724C86G01 Sub 5 in our facility. Let our skilled technicians get your Schindler Elevator back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
