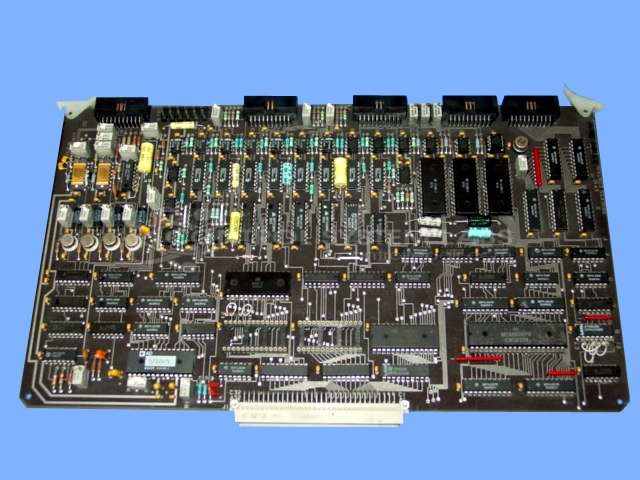

SCI 23084 Epic Process Control Board
Repair
Call for price
Purchase
CSL Part Number: 39775
Product Overview: A microprocessor-based control board used in injection molding and plastics processing machinery to regulate clamp pressure and speed. It operates on +5V and +/-15V supplies, uses trim pots for calibration, and reads pressure transducers while running program code loaded from an associated board.
Category: Control Board
Manufacturer: SCI
Manufacturer Synonyms: Solid Controls Inc
Manufacturer Part Number: 23084
Series: Epic System 10
Also Known As(AKA): 52567
52567 is the Part number for the bare board
Common Failures
Some frequent issues observed in this product include bent or broken trim pots, missing trim pots, and unsoldered connections. These problems often arise from shipping damage or manufacturing oversights. Additionally, some units arrive with unspecified issues that require further evaluation.
Repair Approach
Repair procedures typically involve inspecting and correcting bent or damaged components, such as trim pots and solder joints. Trim pots are often reset to original or centered positions after replacement. Where necessary, soldering connections that were missing from production is carried out to restore proper operation. Each repair includes close inspection to verify component integrity and configuration.
Testing & Quality
Post-repair, units undergo thorough testing to confirm operation. This includes verifying voltages, such as +/- 15V and +5V on the board, and running the unit for a defined duration to confirm stability. When possible, processor functions are checked to verify operation. Ensuring all components are functional and settings are correct forms a crucial part of the testing phase.
Repair your broken SCI part
We can repair your SCI model 23084 .
Please note: our repair turnaround time may be longer than our standard lead times for this item.
Step 1 -
Click the green button above, "Repair Now," and add to your RMA.
Step 2 -
Print the RMA form that is emailed to you, and put it in a box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
You will be sent an authorization for repair via email. Your approval is needed before any work is started.
