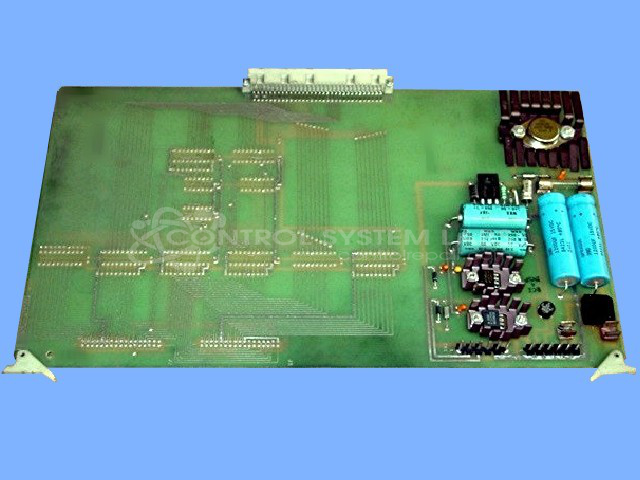

SCI 23391 REV A Epic Triple Voltage Power Supply Board
Repair
Repair Price: $ 400.00
Purchase
CSL Part Number: 67749
Product Overview: A triple voltage power supply board providing regulated +5 VDC and ±15 VDC outputs for industrial control systems. Used in paper manufacturing and process control equipment, it supplies stable DC power to logic and analog circuitry within its control platform.
Category: Power Supply
Manufacturer: SCI
Manufacturer Synonyms: Solid Controls Inc
Manufacturer Part Number: 23391 REV A
Series: Epic System 10
Common Failures
Some units may experience failures in the power supply, often related to the 5V power line. These failures can be associated with components such as the bridge rectifier and voltage regulator.
Repair Approach
The repair process may involve replacing defective components such as the bridge rectifier and voltage regulator IC. Preventative maintenance may include replacing electrolytic capacitors throughout the unit. Damaged PCB connections are also addressed as needed.
Testing & Quality
After repairs are completed, units are tested by checking inputs and outputs. A burn-in test is conducted under load conditions to verify reliability and performance of the repaired unit.
Service and repair your broken SCI part
We can repair your SCI model 23391 REV A in our facility. Let our skilled technicians get your SCI back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
