CSL Part Number: 68041

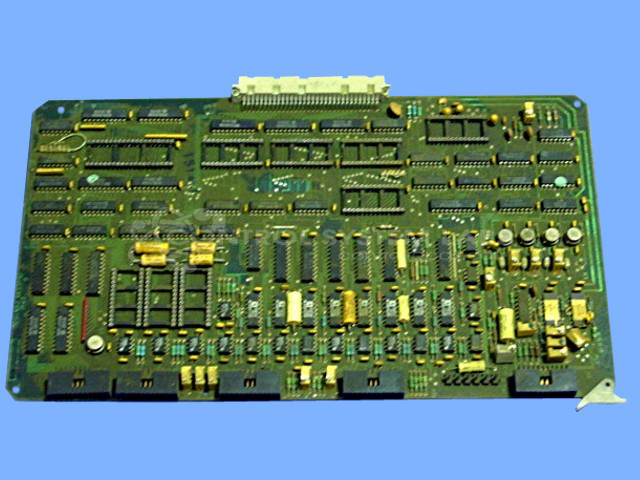

Product Overview: The Epic Process Control Board is a microprocessor-based controller used in SCI's Epic System 10 platform for industrial paper manufacturing applications. Built around a 6809 microprocessor with EPROM program storage and static RAM, it manages process control functions in paper production equipment. The board uses a 74LS541 line driver to generate the processor clock signal and operates on +5V DC power, typically drawing 0.80 amps under normal conditions. This controller integrates into larger Epic System 10 control architectures for monitoring and regulating paper machine operations.
Category: Control Board
Manufacturer: SCI
Manufacturer Synonyms: Solid Controls Inc
Manufacturer Part Number: 52567
Series: Epic System 10
Requires sending in for a repair quote.
Common Failures
Common issues with this product include microprocessor inactivity and contamination on the circuit board that may affect performance.
Repair Approach
Our repair process includes cleaning the circuit board, inspecting and testing key components such as microprocessors, RAM, and EPROMs, and correcting any physical anomalies such as component lead contact issues.
Testing & Quality
We perform comprehensive testing to verify component integrity, including power consumption verification and thermal inspection. Testing typically confirms satisfactory performance of static RAM and programmable devices.
Repair your broken SCI part
We can repair your SCI model 52567 .
Please note: our repair turnaround time may be longer than our standard lead times for this item.
Step 1 -
Click the green button above, "Repair Now," and add to your RMA.
Step 2 -
Print the RMA form that is emailed to you, and put it in a box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
You will be sent an authorization for repair via email. Your approval is needed before any work is started.
