CSL Part Number: 72123

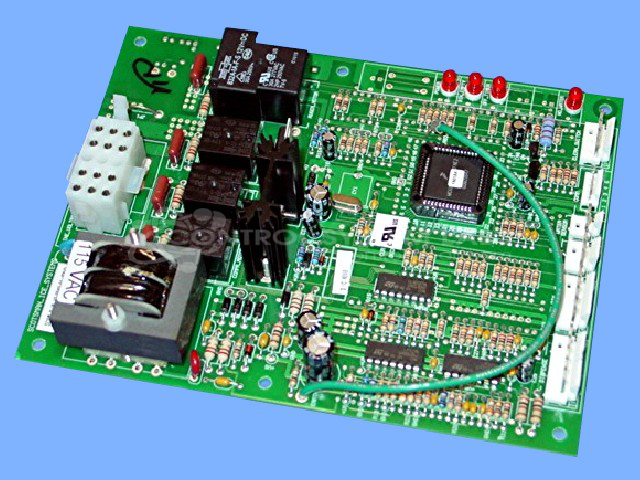

Product Overview: The Scotsman 12-2843-01 is a main control board for commercial ice and water dispensing machines. It manages ice production cycles, water dispensing, auger motor control, and compressor operation while monitoring inputs from water level sensors, bin switches, and user selection switches. The board controls multiple relay outputs for motors and solenoids, providing status indication through panel LEDs. It is commonly used in Scotsman countertop ice dispensers including models MDT3, MDT4, MDT5N25, MDT5N40, TDE470, TDE550, and TDE650. The controller features a 115VAC input with 24VAC transformer and includes water sensor interface circuitry.
Category: Control Board
Manufacturer: Scotsman
Manufacturer Synonyms: Scottsman
Manufacturer Part Number: 12-2843-01
Common Failures
Common issues identified with this product include ice dispenser failures, contactor engagement problems, and sensor issues. Ice dispenser problems are often linked to failing or sticking relays, which either do not activate or deactivate prematurely. These issues may lead to symptoms such as the ice dispenser motor only momentarily running or not activating at all.
Repair Approach
Repairs frequently involve replacing defective relays, transformers, and capacitors. In some cases, poor solder connections to the transformer are identified and corrected by reflowing solder joints, which can resolve intermittent power failures. Other repairs may require replacing connectors or performing adjustments after diagnostic testing to ensure proper operation.
Testing & Quality
Repaired units undergo testing, including burn-in tests with load conditions to simulate operational environments. Tests cover sensor inputs, relay outputs, and response to control inputs to confirm that issues have been addressed. Completed repairs are verified by technicians to ensure they meet quality standards.
Service and repair your broken Scotsman part
We can repair your Scotsman model 12-2843-01 in our facility. Let our skilled technicians get your Scotsman back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
