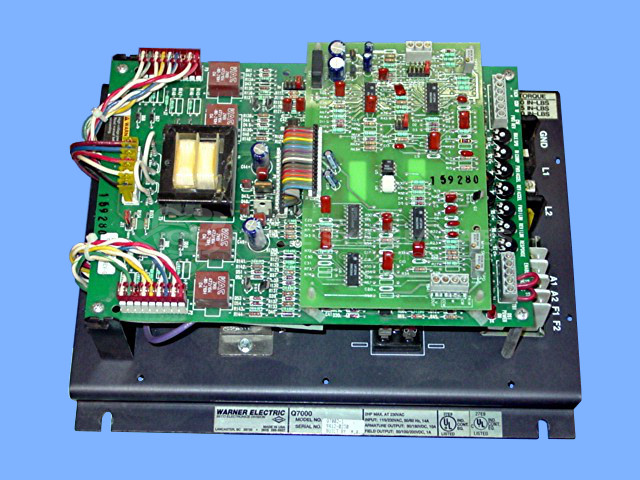

Product Overview: The Quadraline 7000 DC Drive is a compact motor controller rated for 0.25 to 2 horsepower applications. It regulates speed and direction of DC motors in paper handling equipment and similar industrial machinery. This configuration includes the WD36118-00 isolated input daughter board, which provides electrical isolation for control signals. The drive uses SCR-based power control with pulse transformer drivers to achieve bidirectional motor operation.
Category: DC Motor Controls
Manufacturer: SECO
Manufacturer Synonyms: warner electric
Manufacturer Part Number: Q7002-1 W/WD36118-00
Series: Quadraline 7000 Series
Common Failures
Units have been reported with issues such as non-operation in the reverse direction and partial wave operation in the forward direction. These problems have generally been linked to defective components within the pulse transformer drivers and intermittent connections.
Repair Approach
Repairs have involved the replacement of defective driver components responsible for pulse transformer operation. Additionally, repairing intermittent connections at critical points has been necessary to address these operational issues. Resoldering connections and replacing faulty parts have restored functionality in both directions.
Testing & Quality
Repaired units undergo comprehensive diagnostic testing to verify that both forward and reverse operations are restored. Successful cycling of the motor in both directions validates the repairs. Units are confirmed to be fully operational after testing.
