Repair
Repair Price: $ 484.00
Purchase
CSL Part Number: 6510

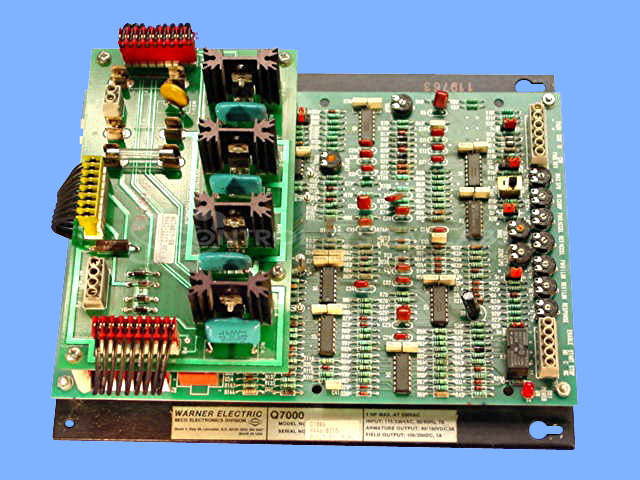

Product Overview: The SECO Quadraline 7000 DC Drive (Model Q7006) is a regenerative DC motor controller rated for 1/8 to 1 horsepower applications. It provides bidirectional speed control using SCR-based power conversion with separate field and armature control. The drive accepts 115VAC input power and includes adjustable speed control via potentiometer, start/stop functions, and internal DC power supplies for control circuitry. Common applications include paper handling equipment and light industrial machinery requiring variable speed DC motor control with reversing capability.
Category: DC Motor Controls
Manufacturer: SECO
Manufacturer Synonyms: warner electric
Manufacturer Part Number: Q7006
Series: Quadraline 7000 Series
Common Failures
Some units have been found with cracked or broken screw terminals, which can affect electrical connections. Variations in the +10VDC supply have also been observed, which may impact unit stability and performance.
Repair Approach
Repairs typically include replacing damaged screw terminals to restore proper electrical connections. Diagnostic testing is performed to confirm the stability of power sections and the proper operation of gate drivers and output components. When supply voltage stability is identified as a concern, targeted component replacements are made.
Testing & Quality
After repairs are completed, testing is performed to verify that functions operate as expected. A 4-hour burn-in test is conducted using both motor and light bulb loads to evaluate reliability. Units are tested to confirm operational capability before return.
Service and repair your broken SECO part
We can repair your SECO model Q7006 in our facility. Let our skilled technicians get your SECO back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
