CSL Part Number: 6515

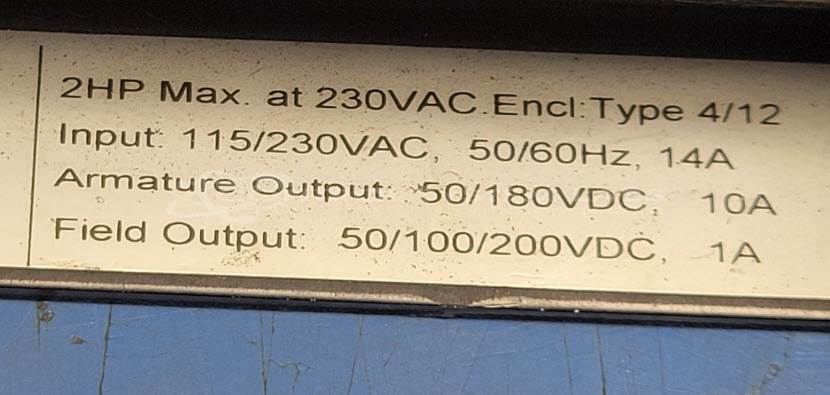

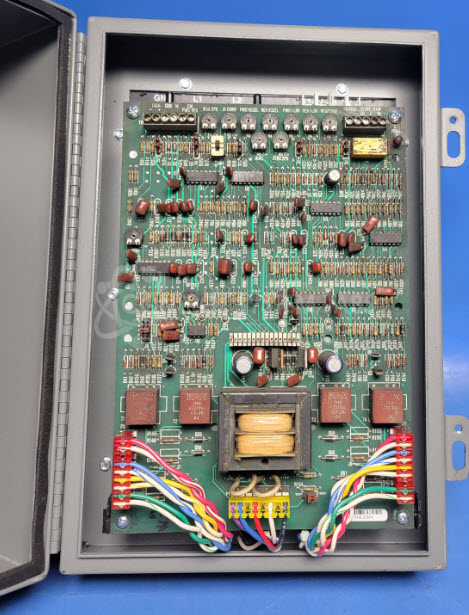

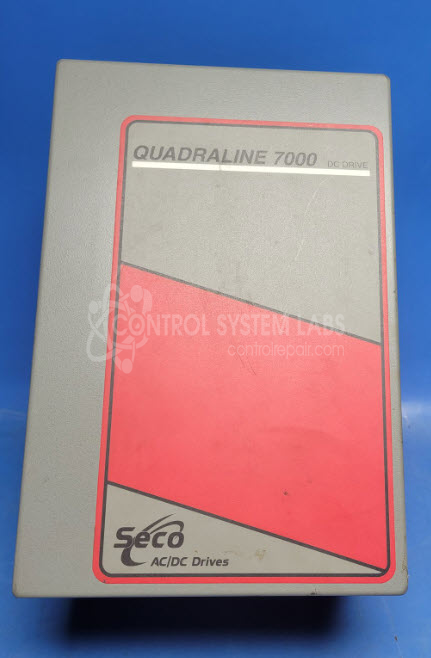

Product Overview: The SECO Quadraline 7000 Series Q7022 is a DC motor drive rated for 0.25 to 2 horsepower applications. It provides adjustable speed control for DC motors with field winding excitation, operating on 230VAC input power. The drive features bidirectional motor control (forward and reverse) and is commonly used in paper processing equipment. It utilizes SCR-based power control circuitry and includes adjustable potentiometers for speed regulation and configurable switches for operational parameters.
Category: DC Motor Controls
Manufacturer: SECO
Manufacturer Synonyms: warner electric

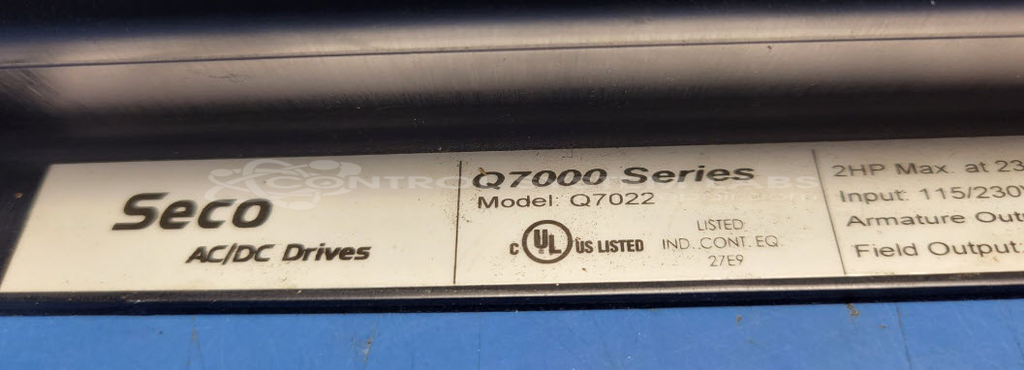

Manufacturer Part Number: Q7022
Series: Quadraline 7000 Series
Common Failures
Units may exhibit erratic behavior or operate in one direction only. These symptoms have been reported by customers, though diagnostic testing does not always replicate the condition.
Repair Approach
Standard diagnostic testing includes operational checks with 220VAC power, field winding output assessment, and testing with DC brushed motors. Cleaning procedures address connectors and trim pots to remove dirt and residue that may affect performance.
Testing & Quality
Comprehensive functionality testing is conducted to confirm operation in both forward and reverse directions. In some cases, no fault has been detected beyond general cleanliness concerns. Units that pass all operational tests may be returned as serviceable without additional repair work.
Service and repair your broken SECO part
We can repair your SECO model Q7022 in our facility. Let our skilled technicians get your SECO back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
