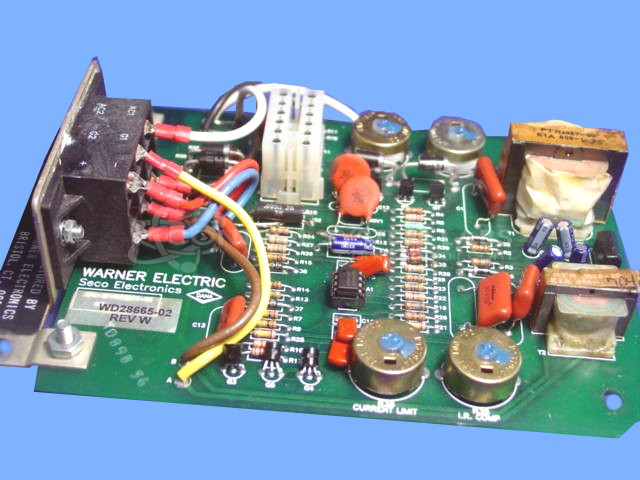

SECO WD28665-02 Motor Control - Card Only
Repair
Repair Price: $ 420.00
Purchase
CSL Part Number: 24824
Product Overview: A DC drive control board for regulating the speed and output of DC motors, rated for 3 horsepower at 230V DC input. Featuring adjustable armature output and speed potentiometer control, it is used in industrial machinery driving variable-speed DC motors.
Category: Motor Controls
Manufacturer: SECO
Manufacturer Synonyms: warner electric
Manufacturer Part Number: WD28665-02
Also Known As(AKA): WARNER ELECTRIC
Common Failures
This product may experience issues such as shorted diodes and power cubes, burnt traces, leaky diodes, and defective potentiometers. Instances of no output voltage due to faulty transformers and capacitors have also been recorded. In some cases, burnt PCBs and shorted resistors require intervention.
Repair Approach
Repairs often involve replacing damaged components such as diodes, capacitors, transformers, resistors, and potentiometers. Additional measures include repairing or rerouting traces, cleaning contaminants, and re-soldering connections. Component upgrades, such as improved capacitors, may be performed where appropriate.
Testing & Quality
Post-repair, devices undergo testing to verify their integrity and functionality. This includes extended burn-in tests, voltage checks, and motor operation simulations. Components are inspected to ensure they meet CSL quality standards.
Service and repair your broken SECO part
We can repair your SECO model WD28665-02 in our facility. Let our skilled technicians get your SECO back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
