Repair
Repair Price: $ 484.00
Purchase
CSL Part Number: 106134

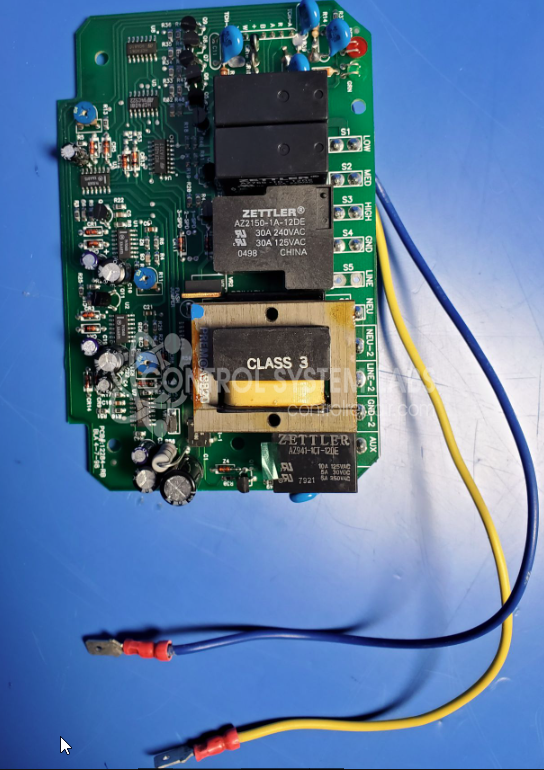

Product Overview: The Sensatron 100743-15 is a sensing module control board designed for hot tub and jetted tub applications. It manages temperature sensing and motor control outputs, operating on 110VAC input with low-voltage AC outputs for pump motors. The board interfaces with a touchpad controller and sensor cable, using relay switching to activate multiple motor outputs. It features LED indicators for power and operational status, with typical configurations supporting three motor outputs controlled through capacitive touch sensing when the operator interface is activated.
Category: Temperature Control
Manufacturer: Sensatron
Manufacturer Part Number: 100743-15
Also Known As(AKA): 12284-RB
Please send operator interface and cable assembly in with the module to be tested together.
Common Failures
Common symptoms reported include unresponsiveness, no power to motor outputs, connector-related issues, and difficulties with the touchpad interface. Relay-related concerns are among the findings observed during evaluation.
Repair Approach
Repair work may include relay replacement, capacitor replacement, inspection of sensor cables for physical damage, and verification of internal connections. The specific repair scope is determined after evaluation and confirmed in the quotation.
Testing & Quality
Post-repair testing includes verification of output response to touchpad commands and motor output functionality. Testing may involve simulated power conditions and interaction with customer-provided components where applicable. All repairs are subject to quality assurance review.
Service and repair your broken Sensatron part
We can repair your Sensatron model 100743-15 in our facility. Let our skilled technicians get your Sensatron back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
