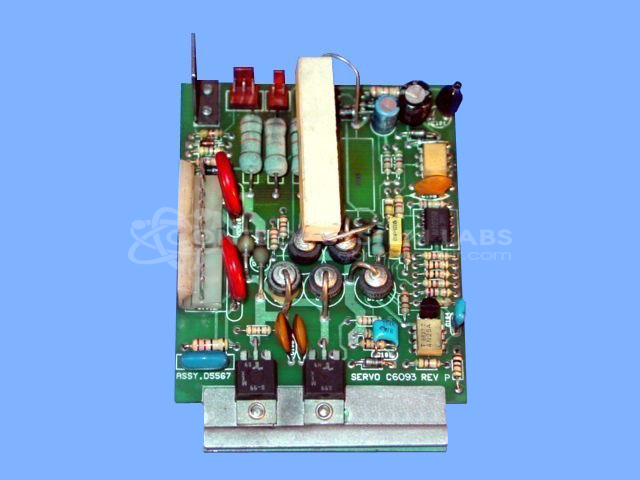

Servo Products D5567 Type 100/150 Power Feed Board
Repair
Repair Price: $ 364.00
Purchase
CSL Part Number: 32143
Product Overview: A power feed control board that regulates DC motor drive for machine tool axis positioning and feed operations. It uses SCR-based output circuitry with MOV surge protection to deliver controlled power to the feed motor in milling and automated machining equipment.
Category: Motor Controls
Manufacturer: Servo Products
Manufacturer Part Number: D5567
Also Known As(AKA): C6093 ON CARD
Common Failures
We have observed issues such as open resistors, damaged traces, faulty connectors, and defective components like SCRs and diodes. These conditions may result in units that do not perform as expected.
Repair Approach
Our repair process typically involves replacing damaged resistors, SCRs, diodes, connectors, and other faulty components. We also repair traces and ensure proper soldering. Each unit undergoes a thorough cleaning before reassembly.
Testing & Quality
All repaired units are subjected to comprehensive testing to confirm functionality. This includes running the unit with a test motor for several hours. We recommend following proper operating guidelines to help prevent future issues.
Service and repair your broken Servo Products part
We can repair your Servo Products model D5567 in our facility. Let our skilled technicians get your Servo Products back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
