Repair
Repair Price: $ 508.00
Purchase
CSL Part Number: 87382

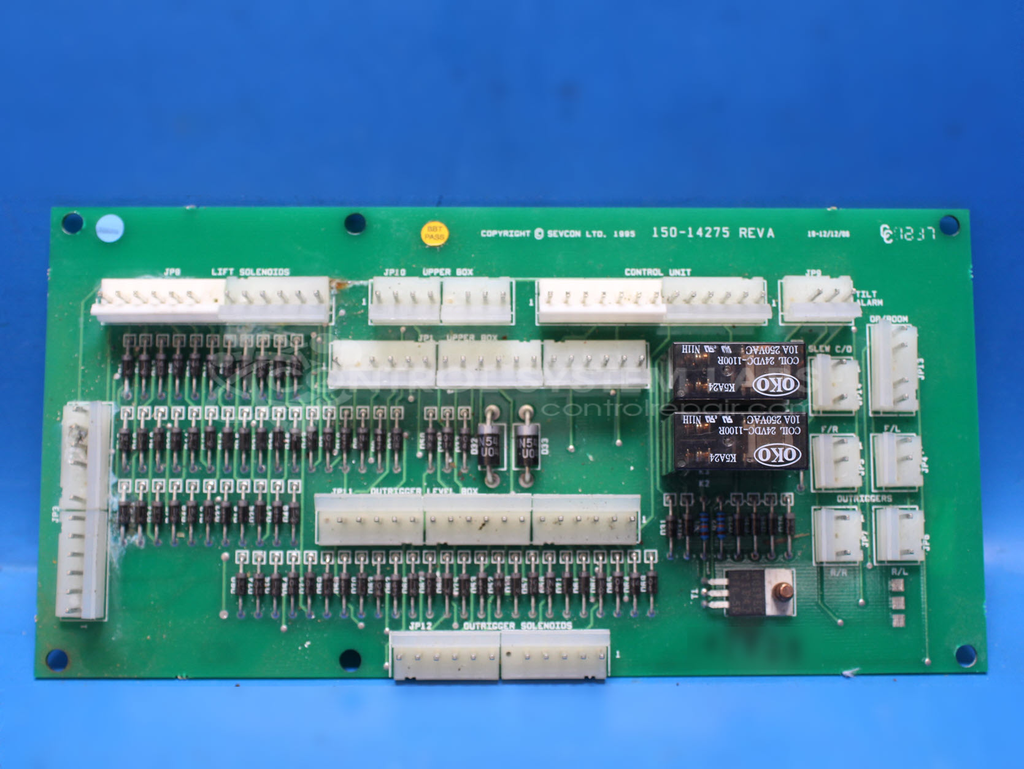

Product Overview: The Sevcon 150-14275 Rev A is a relay-based control board used in industrial control and power distribution applications. It features dual 24VDC DPDT relays rated for 8A switching, along with multiple diodes for circuit protection and suppression. The board is conformal-coated for environmental protection and typically interfaces with other control systems through multiple connectors for input/output signals and power management.
Category: Control Board
Manufacturer: Sevcon
Manufacturer Part Number: 150-14275 Rev A
Common Failures
This product commonly experiences issues such as corrosion, burnt traces, and malfunctioning relays. Damage often includes burned traces linked to diodes and connectors, and relays may become non-functional.
Repair Approach
Typical repair procedures involve diagnosing and replacing faulty relays and diodes. Burned and corroded traces are carefully removed and bypassed. For protection and longevity, a new layer of conformal coating may be applied to the board following repair.
Testing & Quality
Following repairs, products undergo comprehensive testing to verify functionality before return to the customer.
Repair your broken Sevcon part
We can repair your Sevcon model 150-14275 Rev A .
Please note: our repair turnaround time may be longer than our standard lead times for this item.
Step 1 -
Click the green button above, "Repair Now," and add to your RMA.
Step 2 -
Print the RMA form that is emailed to you, and put it in a box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
You will be sent an authorization for repair via email. Your approval is needed before any work is started.
