Repair
Repair Price: $ 540.00
Purchase
CSL Part Number: 82468

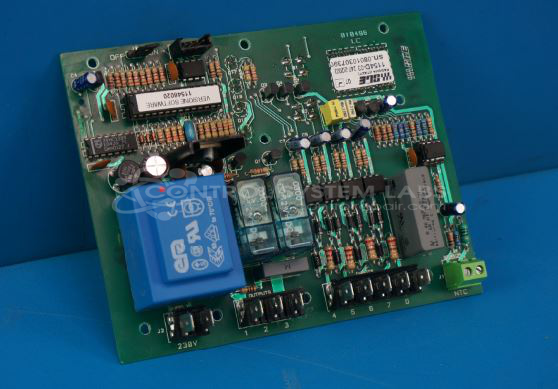

Product Overview: The SGE 1154D-03 Temperature Board is a control board used in air compressor dryer systems. It functions as an operator interface for monitoring and controlling drying processes in compressed air applications. The board uses a PIC microcontroller and LM393 dual comparator for sensor input processing and temperature regulation. It interfaces with external sensors through connector J1 and provides visual feedback for operational status and error codes. Common applications include industrial air compressor systems where precise temperature control and moisture removal are critical for equipment protection and air quality.
Category: Operator Interface
Manufacturer: SGE
Alternate Manufacturer Names: SGE PAVODA
Manufacturer Part Number: 1154D-03
Also Known As(AKA): 247-212002
Other Synonyms: SGE PAVODA
Please include a wiring diagram of your specific connections. Often found on an Ingersol Rand TS250 among others.
Common Failures
This product may be susceptible to damage from water exposure, which can affect control fuses and electronic components. Symptoms may include activation errors on the display, non-responsive inputs, or sensor malfunctions.
Repair Approach
Our evaluation process includes inspection of fuses and control components for signs of failure. Components such as comparators and processors are tested and replaced as needed. In cases where memory components are damaged, data retrieval may not be possible.
Testing & Quality
Units undergo diagnostic testing to confirm the proper function of critical components. Final inspections are conducted to verify repair quality. Items that cannot be successfully repaired are labeled appropriately before return to the customer.
Service and repair your broken SGE part
We can repair your SGE model 1154D-03 in our facility. Let our skilled technicians get your SGE back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
