Repair
Repair Price: $ 394.00
Purchase
CSL Part Number: 116303

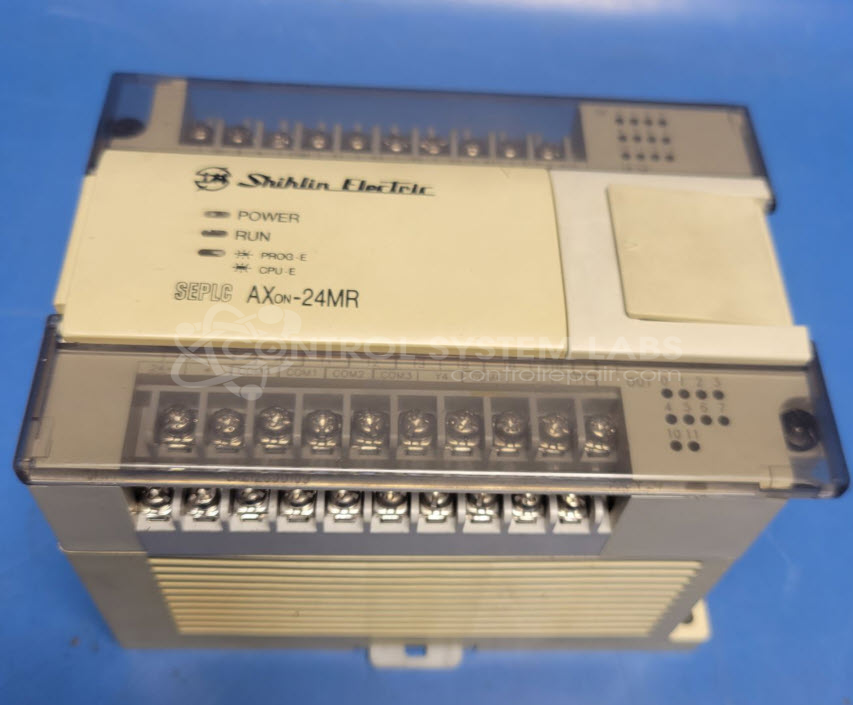

Product Overview: The Shihlin Electric AXON-24MR is a compact PLC base unit from the FX0N series, compatible with Mitsubishi FX0N architecture. This relay-output controller features 24 points (typically 14 inputs and 10 relay outputs) and operates on 120VAC power with internal 24V and 5V rails. It uses external memory cards for program storage rather than internal battery-backed RAM. Common applications include small-scale automation in packaging, material handling, and light manufacturing equipment where relay switching is suitable for controlling motors, valves, and indicators.
Category: PLC
Manufacturer: Shihlin Electric
Alternate Manufacturer Names: Mitsubishi
Manufacturer Part Number: AXON-24MR
Series: FX0N Series PLC
Other Synonyms: Mitsubishi
Please make sure you have backed up the program before powering this down to send in for service. If the program is lost we may not be able to recover it.
Common Failures
This product may experience a drop in power supply voltage when inputs are used. This is often related to damage on internal circuit components that can affect connectivity between input and output commons.
Repair Approach
Repairs typically involve replacing damaged components and verifying trace continuity between the relevant board connections. Our team also verifies proper functioning of the power supply, including the presence of both 24V and 5V outputs.
Testing & Quality
After repair, units are powered with appropriate voltage to confirm the stability of the 24V and 5V power rails. While general functionality can be verified to this extent, customers should conduct final comprehensive testing in their application, particularly functional tests that may involve programming stored on an external memory card.
Service and repair your broken Shihlin Electric part
We can repair your Shihlin Electric model AXON-24MR in our facility. Let our skilled technicians get your Shihlin Electric back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
