Shimadzu 223-01311-90 D/A Auto Zero Card PC-70N
Repair
Repair Price: $ 984.00
Purchase
CSL Part Number: 100046

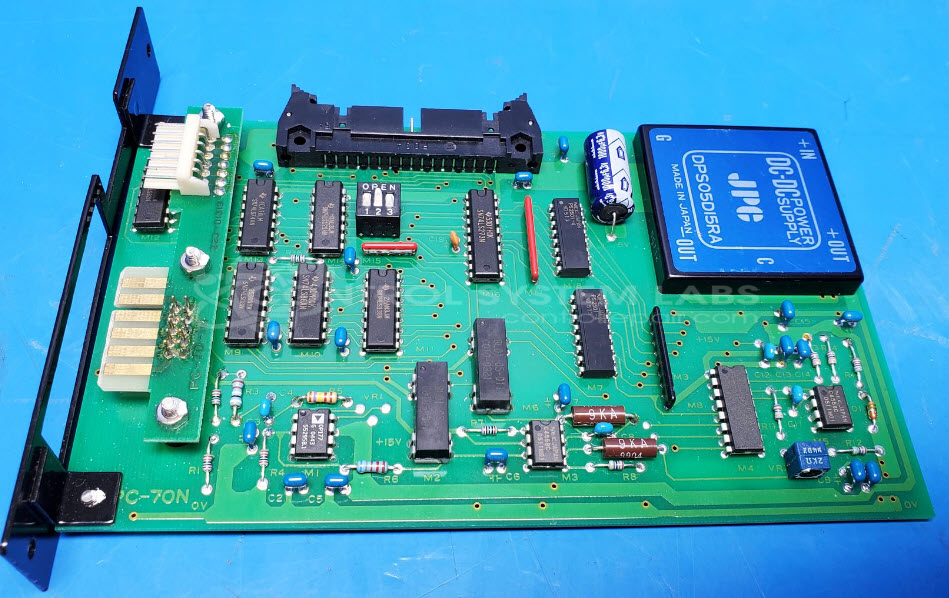

Product Overview: The Shimadzu D/A Auto Zero Card PC-70N (223-01311-90) is a digital-to-analog conversion control board used in Shimadzu analytical instruments and laboratory equipment. It features an onboard DC-DC converter that generates ±15V outputs from a 5V input to power operational amplifiers and digital logic circuitry. The board utilizes 74LS-series logic ICs for signal processing and control functions, with a dual operational amplifier (RC4558P) for analog signal conditioning. Common applications include spectrophotometers, chromatography systems, and other precision measurement instruments requiring accurate D/A conversion and auto-zeroing functionality.
Category: Control Board
Manufacturer: Shimadzu
Manufacturer Part Number: 223-01311-90
Also Known As(AKA): PC-70N
Service and repair your broken Shimadzu part
We can repair your Shimadzu model 223-01311-90 in our facility. Let our skilled technicians get your Shimadzu back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
