Repair
Repair Price: $ 2,428.00
Purchase
CSL Part Number: 87416

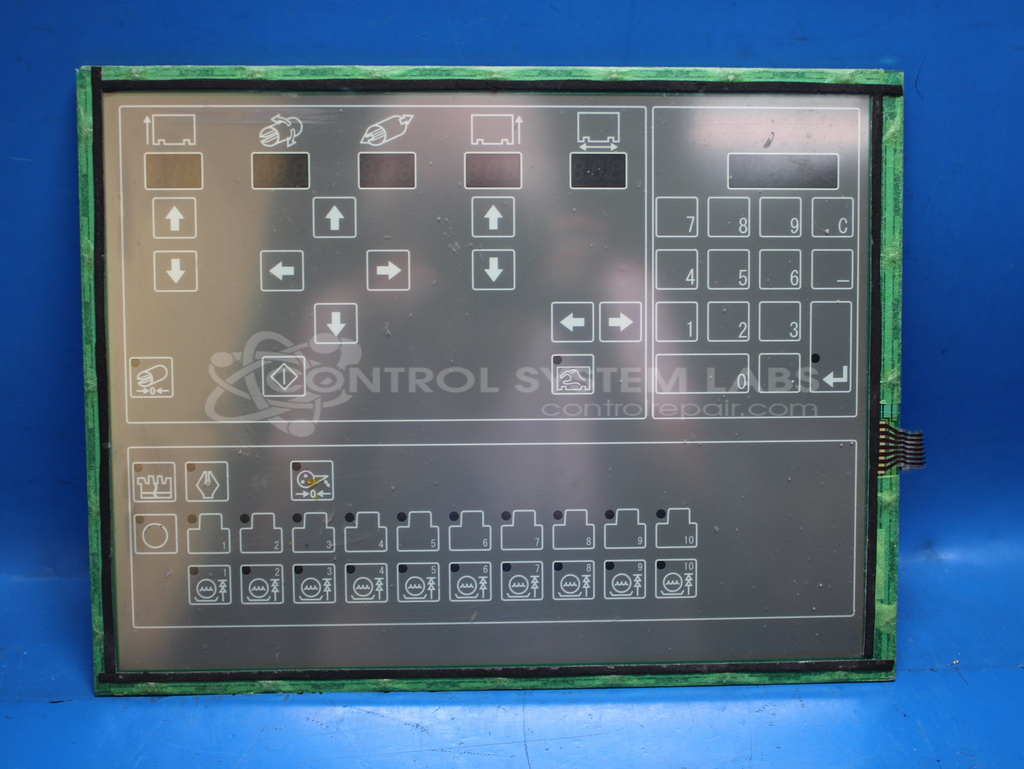

Product Overview: Touch panel used as an operator interface for Shinohara industrial paper processing equipment. Features a resistive touchscreen overlay for user input and control functions. The panel integrates a display with touch-sensitive surface to allow machine operators to monitor status and execute commands. Used in paper machinery control systems where direct operator interaction is required for process management and equipment adjustment.
Category: Operator Interface
Manufacturer: Shinohara
Manufacturer Part Number: W337 H235
Also Known As(AKA): 4J3400-0201B00
Common Failures
Users have reported issues with the display, such as the screen beeping and all segments illuminating unexpectedly. Another common symptom is incorrect touchscreen calibration, where touches activate controls in the wrong areas.
Repair Approach
Resolution for these issues may involve reinstalling any detached components like capacitors and replacing cracked touch panels. Replacing the front panel may be necessary if touch calibration is extensively off due to physical damage. Once the unit is received and reviewed, we can provide a quotation before any repair work begins.
Repair your broken Shinohara part
We can repair your Shinohara model W337 H235 .
Please note: our repair turnaround time may be longer than our standard lead times for this item.
Step 1 -
Click the green button above, "Repair Now," and add to your RMA.
Step 2 -
Print the RMA form that is emailed to you, and put it in a box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
You will be sent an authorization for repair via email. Your approval is needed before any work is started.
