Repair
Repair Price: $ 2,860.00
Purchase
CSL Part Number: 36933

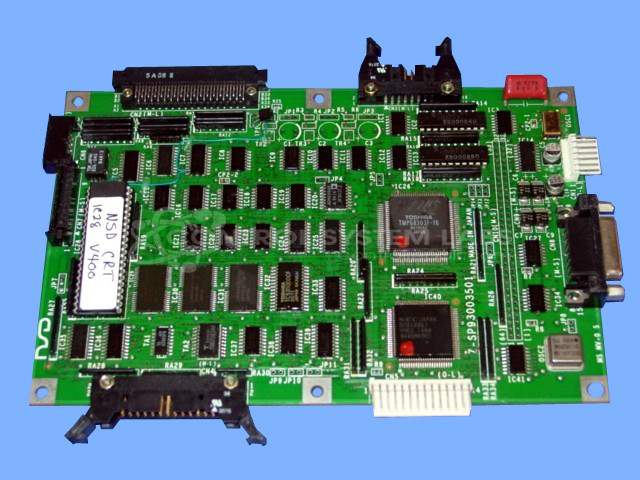

Product Overview: A video display control board that generates CRT monitor output for industrial machine operator interfaces. It processes video and sync signals to drive the display, using logic ICs, programmable GAL/PAL devices, and a 32MHz crystal oscillator. Commonly found in paper industry control systems with keypad and CRT or LCD monitors.
Category: Control Board
Manufacturer: Shinwa
Alternate Manufacturer Names: Shinwa Seiki
Manufacturer Part Number: AIC-50 CRT
Other Synonyms: Shinwa Seiki
We have a test fixture to repair your Shinwa Hardware
Common Failures
This product may experience issues such as no output to the monitor, communication errors, and water damage affecting board components. Problems can stem from defective logic ICs, oscillators, and connectivity issues, particularly around the power supply connection.
Repair Approach
Repairs may involve replacing defective components, such as logic ICs and oscillators. Open traces and solder joint issues are addressed by rebuilding traces and resoldering connections. Specific cases have required replacement of multiple chips to restore functionality.
Testing & Quality
After repairs, units undergo testing, including burn-in and system checks. Any issues identified during testing are methodically addressed to maintain repair quality and performance standards.
Service and repair your broken Shinwa part
We can repair your Shinwa model AIC-50 CRT in our facility. Let our skilled technicians get your Shinwa back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
