Repair
Repair Price: $ 5,784.00
Purchase
CSL Part Number: 37168

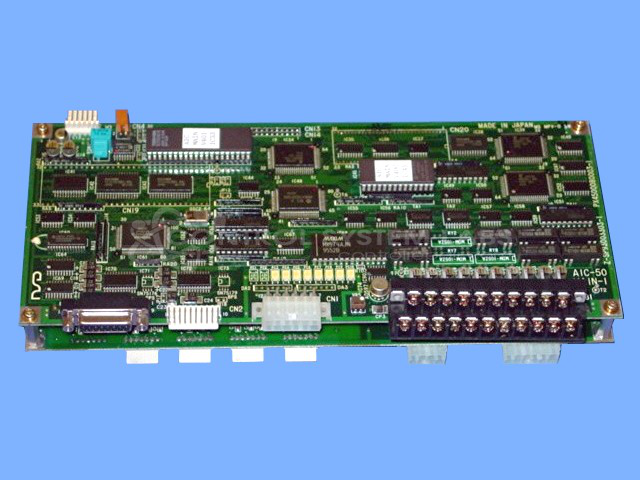

Product Overview: This control board assembly manages machine operation and multi-zone temperature regulation for industrial paper and plastics processing equipment. Comprising a main board pairing, it provides monitor output, heat zone control across multiple zones, and oil temperature monitoring, with parameter-based configuration stored in onboard memory.
Category: Control Board
Manufacturer: Shinwa
Alternate Manufacturer Names: Shinwa Seiki
Manufacturer Part Number: AIC-50 MAIN 1 W/MAIN 2
Other Synonyms: Shinwa Seiki
Send in both cards as it is a two-card assembly. Do not separate them. There is also volatile memory on this board-set that is backed up by a battery on the backplane. Please send in the loader and the memory card so that we can use your parameters.
Common Failures
Common issues reported with this product include no output to the monitor and a non-functional rear heat zone. Another reported issue involves the control indicating all heat zones, including oil, reading inaccurately at 896 degrees.
Repair Approach
For cases where the display and rear heat zone are not functioning, verification can be challenging without customer-provided parameters. When heat zone readings are inaccurate, initializing the memory has been effective in some cases. This approach has resolved similar reported issues in the past.
Service and repair your broken Shinwa part
We can repair your Shinwa model AIC-50 MAIN 1 W/MAIN 2 in our facility. Let our skilled technicians get your Shinwa back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
