CSL Part Number: 19380

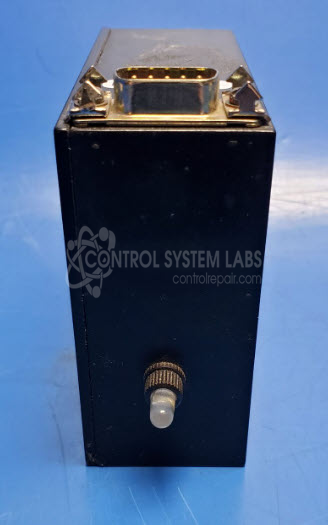

Product Overview: The SICK NT8-02412 is a modified color mark scanner designed for web detection in paper manufacturing and converting applications. It uses a light source (originally an incandescent bulb, now sometimes modified to LED) and reflective optics to detect contrast or registration marks on moving paper webs. The unit outputs an analog voltage that varies based on the amount of reflected light, typically ranging from approximately 4-7 VDC depending on the target material. Common configurations include DB9 connector interfaces and operate on dual voltage supplies (15V main, 4-5V for light source).
Category: Photo Eye-Head-Controls
Manufacturer: SICK
Alternate Manufacturer Names: WPC
Manufacturer Part Number: NT8-02412
Also Known As(AKA): 805-605-00
Other Synonyms: WPC
If lamp bulb is defective no CSL repair, parts are not available.
Common Failures
Several recurring issues have been identified with this product, including misinstallation of components, dirt and corrosion affecting performance, and physical damage to external connectors. Common symptoms include the device not picking up marks correctly, no light or incorrect output voltage, dim bulbs, and general non-functionality when attempting to scan.
Repair Approach
Our repair methods involve correcting installation errors, replacing defective LEDs or bulbs, resoldering connections, and thorough cleaning of lenses and components to address dirt and corrosion. In some instances, units require complete disassembly for cleaning and reassembly. Additional physical repairs include replacing missing or mismatched parts such as slide latches and screws.
Testing & Quality
After repairs, units undergo testing, including voltage range verification and burn-in tests with load to evaluate functionality. Successful tests confirm correct operation, with outputs meeting the expected voltage range based on reflective materials. Some units may be returned unrepaired if they do not pass final quality testing or if component availability is limited.
Service and repair your broken SICK part
We can repair your SICK model NT8-02412 in our facility. Let our skilled technicians get your SICK back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
