Repair
Repair Price: $ 3,484.00
Purchase
CSL Part Number: 18628

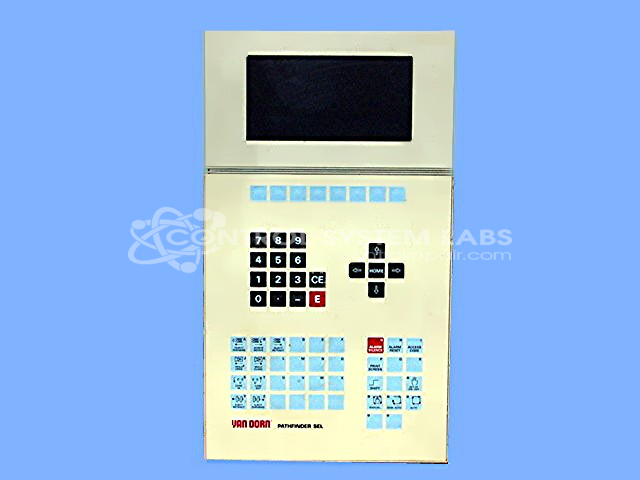

Product Overview: The Siemens 6ES5398-0KB12 Pathfinder Control with Display Panel is an operator interface workstation used primarily in Van Dorn plastic injection molding machines and paper industry applications. It features an electroluminescent display, membrane keypad with backlit buttons, and a battery-backed cartridge slot for program storage. The unit combines a processor board with integrated power supply circuitry and provides machine control and monitoring functions. Common in industrial automation from the 1980s-90s, it interfaces with PLCs and process equipment for parameter entry and system status display.
Category: Operator / Monitor Workstation
Manufacturer: Siemens
Alternate Manufacturer Names: Van Dorn
Manufacturer Part Number: 6ES5398-0KB12
Series: Pathfinder Operator Station
Also Known As(AKA): OP398K VAN DORN #
Other Synonyms: Van Dorn
Display repairs will be quoted after evaluation.
Common Failures
Customers commonly report issues such as buttons lighting up with no screen function, systems entering a constant boot loop, and screens flickering or turning off. In some cases, defective capacitors and solder joints have been identified during evaluation. Additionally, corrosion affecting connector functionality has been observed.
Repair Approach
To address these issues, repair actions may include replacing defective capacitors, repairing or reflowing solder joints, and cleaning corrosion from connectors. In instances of board flexure failures, adjustments to solder joints have been performed. Repairs to display components and circuit board traces are also conducted as needed based on evaluation findings.
Testing & Quality
Repaired units undergo testing, including diagnostic tests and burn-in tests, to verify functionality. Units are tested under no-load conditions to confirm stability, with test durations ranging from a few hours to several days depending on the repair complexity. Keypad and display functionalities are included in standard post-repair testing procedures.
Service and repair your broken Siemens part
We can repair your Siemens model 6ES5398-0KB12 in our facility. Let our skilled technicians get your Siemens back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
