Home >  Siemens A1-106-100-505 ISSUE 4 A1-106 Drive Field Supply Board

Siemens A1-106-100-505 ISSUE 4 A1-106 Drive Field Supply Board

Repair

Repair Price: $ 1,864.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/42360/image_1920?unique=6fe4493
  • Condition

Purchase Price: $ 0.00 $ 0.00 1864.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 23286

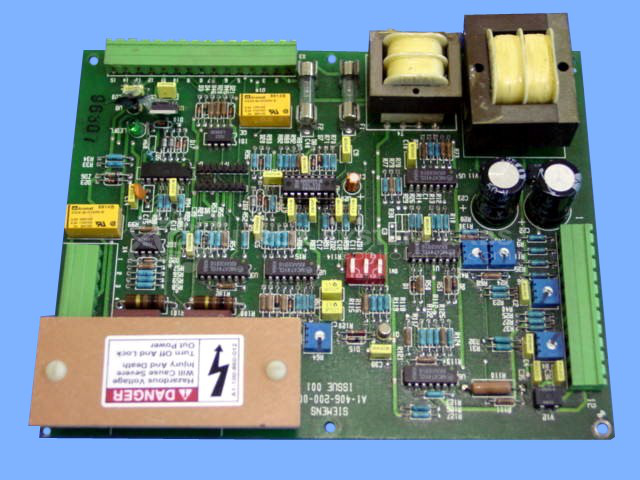

Product Overview: A field supply board used in DC motor drive systems, commonly found in paper mill and industrial process equipment. It provides regulated field excitation power to DC motors, featuring onboard voltage regulation (±15V regulators) and filtering for stable control of the motor's field winding.
Category: Motor Controls
Manufacturer: Siemens
Manufacturer Part Number: A1-106-100-505 ISSUE 4

Common Failures

This product may experience issues related to capacitors and solder connections. Common symptoms include voltage regulation concerns and connectivity issues due to component or solder joint degradation.

Repair Approach

Repairs typically involve replacing damaged capacitors and regulators, as well as repairing solder connections. We focus on restoring proper component connections to address known failure modes.

Testing & Quality

After repairs, the product undergoes burn-in testing to verify operational capability. This testing procedure ranges from one to four hours to verify the effectiveness of the repairs.

Service and repair your broken Siemens part


We can repair your Siemens model A1-106-100-505 ISSUE 4 in our facility. Let our skilled technicians get your Siemens back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
