Repair
Repair Price: $ 6,072.00
Purchase
CSL Part Number: 74500

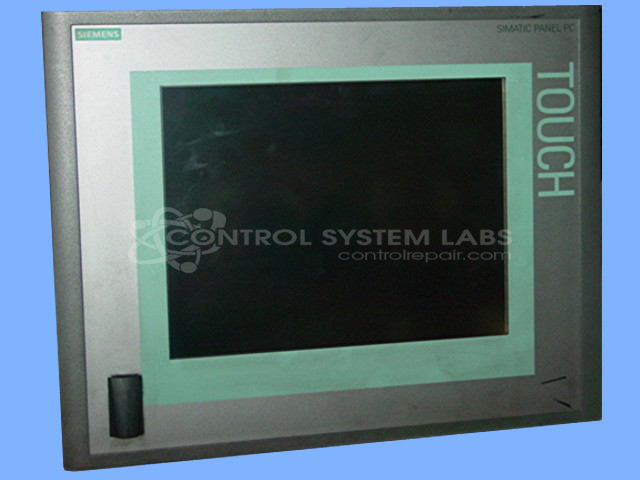

Product Overview: A 12-inch LCD panel with integrated resistive touchscreen, serving as the operator interface display for an industrial panel PC. It connects to a separate PC module and includes a backlit screen with dedicated power supply, used for human-machine interface applications in manufacturing and process control environments.
Category: LCD Display
Manufacturer: Siemens
Manufacturer Part Number: A5E00470943
Also Known As(AKA): PC 577 FOR MANUALS
Common Failures
Units may experience issues with the backlight power supply and touchscreen. Problems have also been identified with hard drives exhibiting bad sectors, and power supply modules causing functionality issues.
Repair Approach
Common repairs include replacing fuses in the backlight power supply, replacing defective touchscreens, and upgrading or replacing hard drives. For power supply issues, replacing the power supply module may be performed. After repairs, systems are thoroughly checked and tested.
Testing & Quality
Following repairs, each unit undergoes testing, including control checks and burn-in tests. Burn-in durations vary, typically ranging from 2 to overnight, to verify functionality before the product is returned.
Service and repair your broken Siemens part
We can repair your Siemens model A5E00470943 in our facility. Let our skilled technicians get your Siemens back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
